Pegasus Plus One S 100 (4") Channel Drains

Used for the collection and drainage of rainwater. The Pegasus Plus One S is a specially designed ultra-slim channel, available in a range of colors complete with matching gratings, for use across garage entrances, in patios and other areas around the home.  Also available with Galvanized or Stainless Steel gratings in a variety of patterns.

Made to the EN1433 standards, Pegasus Plus One S channels are made of PP (polypropylene), engineered and reinforced to be highly resistant. Colors in stock: Gray and Black. These channels, on specific request, are also available in sand or white color.

Classifications and Standards

Specification Sheet download symbol
Specification Sheet
  • main pic

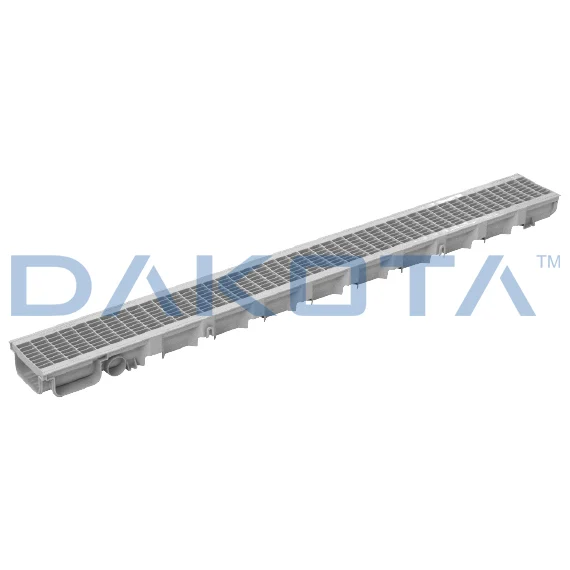

  • full channel

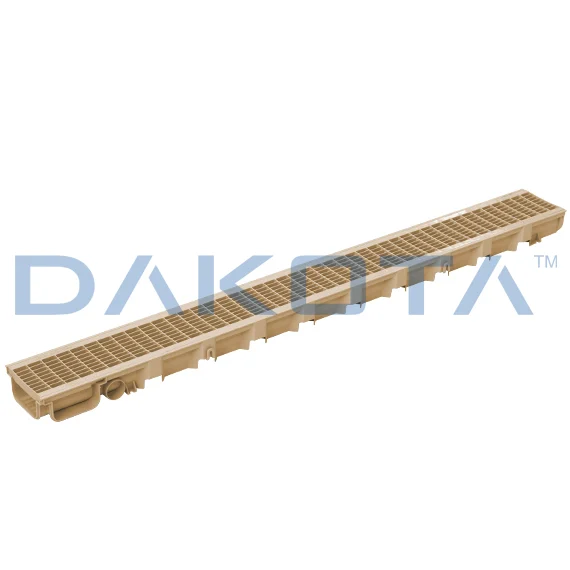

  • Slider Item 3

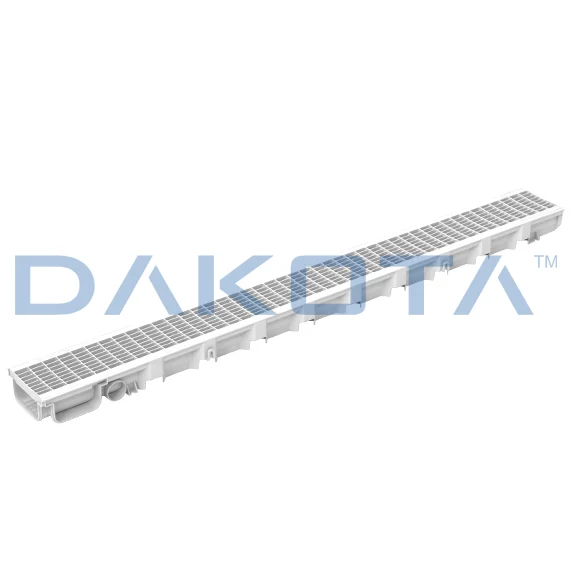

  • Slider Item 4

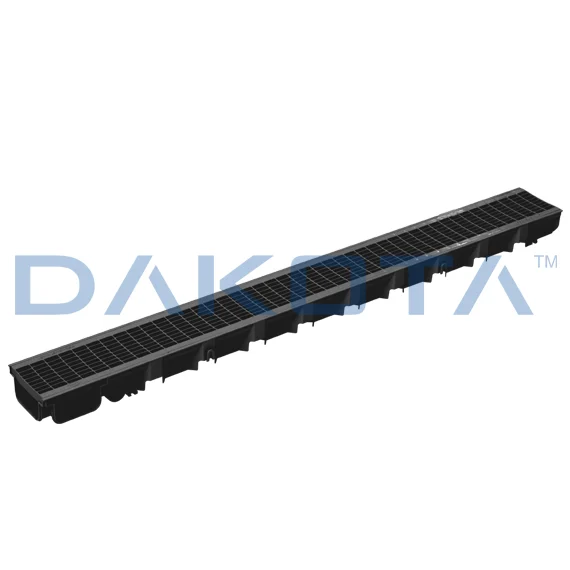

  • Slider Item 1

Pegasus Plus One S Channels with matching color Plastic (PP) gratings

Download Legend
PDF BLUE = Declaration of Conformity
PDF RED = Technical Datasheet
These channels, with pre-mounted gratings, can be used in pedestrian or light traffic areas.
Lateral inlet diameter is 32 mm (1¼"), bottom outlets are 40, 63 mm (1⅝", 2½"}.
Note: Measurements shown above relate to OD's (outside diameters) of pipes.
Pegasus Plus One S Dimensions
  Qty:
242 Pc.

A15

PEGASUS PLUS ONE S 100 - WITH PLASTIC GRATINGS

CodeProductSize mm (in.) WxDxLPkPallet Qty.UM
POZ90-1335P100/35 Gray with Gray PP Grating100 x 35 x 1,000
(4" x 1⅜" x 39.37")		1 pc.242 pcs.1 pc.
POZ90-1335PN100/35 Black with Black PP Grating100 x 35 x 1,000
(4" x 1⅜" x 39.37")		1 pc.242 pcs.1 pc.
POZ90-1335PS100/35 Sand with Sand PP Grating100 x 35 x 1,000
(4" x 1⅜" x 39.37")		1 pc.242 pcs.1 pc.
POZ90-1335PB100/35 White with White PP Grating100 x 35 x 1,000
(4" x 1⅜" x 39.37")		1 pc.242 pcs.1 pc.

Pegasus Plus One S Channels with Galvanized or Stainless Steel gratings


Declaration of Conformity
For rainwater collection and drainage. The use of stainless and galvanized gratings also makes these channels ideal for bathrooms, around pools, locker rooms and for the food industry.
Pegasus Plus One S Dimensions
  Qty:
242 Pc.
Download Legend
PDF GREEN =  Specification Sheet
PDF RED = Technical Datasheet
Specification Sheet download symbol
Stainless Steel
Specification Sheet download symbol
Galvanized Steel
PDF Symbol - Technical Datasheet
Tech Datasheet Stainless Steel
PDF Symbol - Technical Datasheet
Tech Datasheet Galv. Steel
Gray Channel "Wave More"
Gray Channel "Wave More"
Black Channel "Wave More"
Black Channel "Wave More"
White Channel "Wave More"
White Channel "Wave More"
Gray Channel "Wave"
Gray Channel "Wave"
Black Channel "Wave"
Black Channel "Wave"
White Channel "Wave"
White Channel "Wave"
Grey Channel "Hole"
Grey Channel "Hole"
Black Channel "Hole"
Black Channel "Hole"
White Channel "Hole"
White Channel "Hole"

A15

PEGASUS PLUS ONE S 100 - WITH STAINLESS OR GALVANIZED STEEL GRATINGS

CodeProductSize mm (in.) WxDxLPkPallet Qty.UM
POZ90-1335P/1100/35 Gray Channel with Wave More
Stainless Steel Grating		100 x 35 x 1,000
(4" x 1⅜" x 39.37")		1 pc.242 pcs.1 pc.
POZ90-1335P/Z1100/35 Gray Channel with Wave More
Galvanized Steel Grating		100 x 35 x 1,000
(4" x 1⅜" x 39.37")		1 pc.242 pcs.1 pc.
POZ90-1335PN/1100/35 Black Channel with Wave More
Stainless Steel Grating		100 x 35 x 1,000
(4" x 1⅜" x 39.37")		1 pc.242 pcs.1 pc.
POZ90-1335PN/Z1100/35 Black Channel with Wave More
Galvanized Steel Grating		100 x 35 x 1,000
(4" x 1⅜" x 39.37")		1 pc.242 pcs.1 pc.
POZ90-1335PB/1100/35 White Channel with Wave More
Stainless Steel Grating		100 x 35 x 1,000
(4" x 1⅜" x 39.37")		1 pc.242 pcs.1 pc.
POZ90-1335PB/Z1100/35 White Channel with Wave More
Galvanized Steel Grating		100 x 35 x 1,000
(4" x 1⅜" x 39.37")		1 pc.242 pcs.1 pc.
POZ90-1335P/2100/35 Gray Channel with Wave Less
Stainless Steel Grating		100 x 35 x 1,000
(4" x 1⅜" x 39.37")		1 pc.242 pcs.1 pc.
POZ90-1335P/Z2100/35 Gray Channel with Wave Less
Galvanized Steel Grating		100 x 35 x 1,000
(4" x 1⅜" x 39.37")		1 pc.242 pcs.1 pc.
POZ90-1335PN/2100/35 Black Channel with Wave Less
Stainless Steel Grating		100 x 35 x 1,000
(4" x 1⅜" x 39.37")		1 pc.242 pcs.1 pc.
POZ90-1335PN/Z2100/35 Black Channel with Wave Less
Galvanized Steel Grating		100 x 35 x 1,000
(4" x 1⅜" x 39.37")		1 pc.242 pcs.1 pc.
POZ90-1335PB/2100/35 White Channel with Wave Less
Stainless Steel Grating		100 x 35 x 1,000
(4" x 1⅜" x 39.37")		1 pc.242 pcs.1 pc.
POZ90-1335PB/Z2100/35 White Channel with Wave Less
Galvanized Steel Grating		100 x 35 x 1,000
(4" x 1⅜" x 39.37")		1 pc.242 pcs.1 pc.
POZ90-1335P/3100/35 Gray Channel with Hole
Stainless Steel Grating		100 x 35 x 1,000
(4" x 1⅜" x 39.37")		1 pc.242 pcs.1 pc.
POZ90-1335P/Z3100/35 Gray Channel with Hole
Galvanized Steel Grating		100 x 35 x 1,000
(4" x 1⅜" x 39.37")		1 pc.242 pcs.1 pc.
POZ90-1335PN/3100/35 Black Channel with Hole
Stainless Steel Grating		100 x 35 x 1,000
(4" x 1⅜" x 39.37")		1 pc.242 pcs.1 pc.
POZ90-1335PN/Z3100/35 Black Channel with Hole
Galvanized Steel Grating		100 x 35 x 1,000
(4" x 1⅜" x 39.37")		1 pc.242 pcs.1 pc.
POZ90-1335PB/3100/35 White Channel with Hole
Stainless Steel Grating		100 x 35 x 1,000
(4" x 1⅜" x 39.37")		1 pc.242 pcs.1 pc.
POZ90-1335PB/Z3100/35 White Channel with Hole
Galvanized Steel Grating		100 x 35 x 1,000
(4" x 1⅜" x 39.37")		1 pc.242 pcs.1 pc.

Drainage Channel Accessories - Pegasus Plus One S 100

End caps for channels. Supplied as sets of 2 pcs.
Materials: PP (polypropylene) for end caps, except Silver in ABS.

Use - The end caps are used as terminals for the channel.

Open & Closed End Caps
(2 pcs/pack)

Code: POZ95-1335T
Size: 100 x 35 mm (4" x 1⅜")
Pallet Qty: 6000

Open & Closed End Caps
(2 pcs/pack)

Code: POZ95-1335TN
Size: 100 x 35 mm (4" x 1⅜")
Pallet Qty: 6000

Open & Closed End Caps
(2 pcs/pack)

Code: POZ95-1335TS
Size: 100 x 35 mm (4" x 1⅜")
Pallet Qty: 6000

Open & Closed End Caps
(2 pcs/pack)

Code: POZ95-1335TB
Size: 100 x 35 mm (4" x 1⅜")
Pallet Qty: 6000
