Drainage Products

Pegasus Short 130 (5") & 200 (8") Channel Drains

Used for the collection and drainage of rainwater. The Pegasus Short range is easy to handle and is particularly suited for smaller projects like garage entrances, patios and other areas where longer runs of drainage are not required.  Available in Gray only with gratings in a variety of patterns to suit requirements.

Pegasus Short channels are made of PP (polypropylene), engineered and reinforced to be highly resistant.

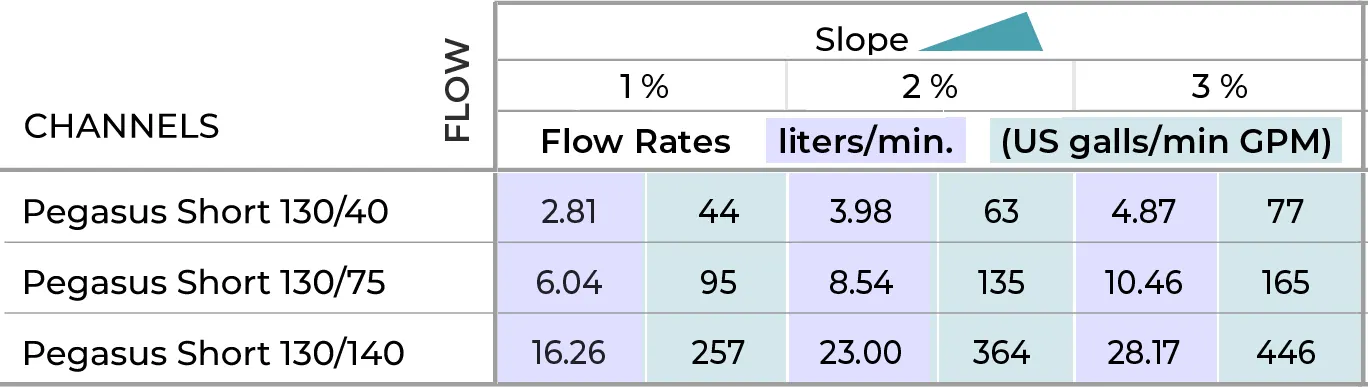

Pegasus 130 Flow Rates
Specification Sheet download symbol
Specification Sheet
  • main pic
  • full channel
  • Slider Item 3
  • Slider Item 4
  • Slider Item 1

Pegasus Short 130 (5") & 200 (8") Channels

These channels are available in Gray and are suitable for pedestrian or light traffic areas.
Bottom outlets:
130/40, 130/75 - 50, 75 mm (2", 3");  130/140 - 50 mm (2")
200/165 - 63, 74 mm (2½", 3")
200/175 - 75, 100, 110 mm (3", 4", 4⅓").

Note: Measurements shown above relate to OD's (outside diameters) of pipes.

Pegasus Plus One S Dimensions
01
02
03
04
05
CodeRef:ProductSize mm (in.) WxDxLPkPallet Qty.UM
POZ91-1300A01Pegasus Short 130/40 Gray130 x 40 x 500
(5" x 1⁹⁄₁₆" x 19¾")		1 pc.520 pcs.1 pc.
POZ91-130002Pegasus Short 130/75 Gray130 x 75 x 500
(5" x 3" x 19¾")		1 pc.320 pcs.1 pc.
POZ91-144003Pegasus Short 130/140 Gray130 x 140 x 500
(5" x 5½" x 19¾")		1 pc.192 pcs.1 pc.
POZ91-136404Pegasus Short 200/165 Gray200 x 165 x 500
(8" x 6½" x 19¾")		1 pc.96 pcs.1 pc.
POZ91-1364H*05Pegasus Short 200/175 Heavy Gray - with lateral inlet ⌀ 100, 110 mm (4", 4⅓")200 x 175 x 500
(8" x 6⅞" x 19¾")		1 pc.96 pcs.1 pc.
* This channel can only be used with the POZ90-1361H heavy-duty grating.
Short 130/40
Tech. Data
Short 130/75
Tech. Data
Short 130/140
Tech. Data
Short 200/165
Tech. Data
Short 200/175
Tech. Data

Drainage Channel Accessories - Pegasus Short

End Caps for Channels, Lock System (anchor bracket) and gasket for channels.

Materials: PP for the End Caps, PE-HD (high density polyethylene) for the Lock System.

Use: The end caps and the bulkheads are used as terminals for the channel, the Lock System is used to lock the Grating inside the channel (following European Regulation EN 1433) and the rubber connection is used to joint the exit hole to the outlet pipe.

See the gratings that fit the Taurus 130 Short (5") wide channels.

See the gratings that fit the Taurus 130 Short (5") wide channels.

Open End Cap - Gray - 130/40

Code: POZ95-1300AT
Size: 130 x 40mm (5" x 1⁹⁄₁₆")
Pallet Qty: 4,500

Closed End Cap - Gray - 130/40


Code: POZ95-1300ATC
Size: 130 x 40mm (5" x 3")
Pallet Qty: 4,000

End Cap Set - Gray - 130/75 (2 pack)


Code: POZ95-1300T
Size: 130 x 75mm (5" x 3")
Pallet Qty: 2,500

End Cap Set - Gray - 130/140

Code: POZ90-1443
Size: 130 x 140mm (5" x 5½")
Pallet Qty: -

Locking Kit (screws & bolts included) for 130/40 & 130/75

Code: POZ95-1307B
Size: -
Pallet Qty: 4,000

200 Short Locking Kit (screws & bolts included)


Code: POZ90-1369
Size: -
Pallet Qty: 500

Pipe Connection
Gray - 110mm (4⅓")



Code: POZ95-1321
Size: 110 mm (4⅓")
Pallet Qty: 2,000

Locking Kit (screws & bolts included) for 130/140


Code: POZ90-1359
Size: -
Pallet Qty: 900

End Cap Set - Gray - 200/165 (2 pack)


Code: POZ90-1366
Size: 200 x 165mm (8" x 6½")
Pallet Qty: 750

Gasket Seal for Channel



Code: POZ95-1319
Size: 130 x 75 mm (5" x 3")
Pallet Qty: 4,000

Pegasus Short 130 (5") Kit - 12m (39.4 ft.)

Kit composed of 24 PP channels, dimensions 130 x 75 x 500 mm (5" x 3" x 19¾") in gray color, 5 end caps and 24 PP gratings (500 mm - 19¾"). Sold in complete box only.

Materials - Made of PP (polypropylene).

Use - Used for the collection and drainage of rainwater, particularly in the connection between ramps and garage entrances and/or for sub-surface rooms.

CodeProductSize mm (in.) WxDxLPkPallet Qty.UM
POZ91-1300KI24 Pegasus Short Channels - 130/75 Gray, 24 Strong gratings, 5 End Caps. 12 meter (39.4 ft).130 x 75 x 500 channels
(5" x 3" x 19¾")		24 pc.8 pcs.box
