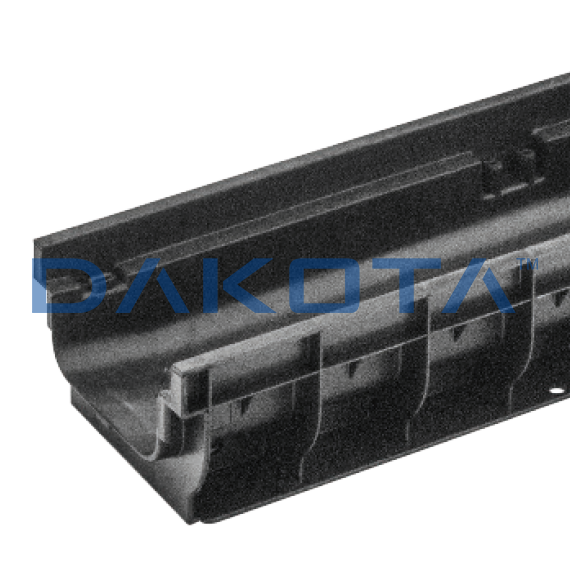

Taurus 130 (5") Channel Drains

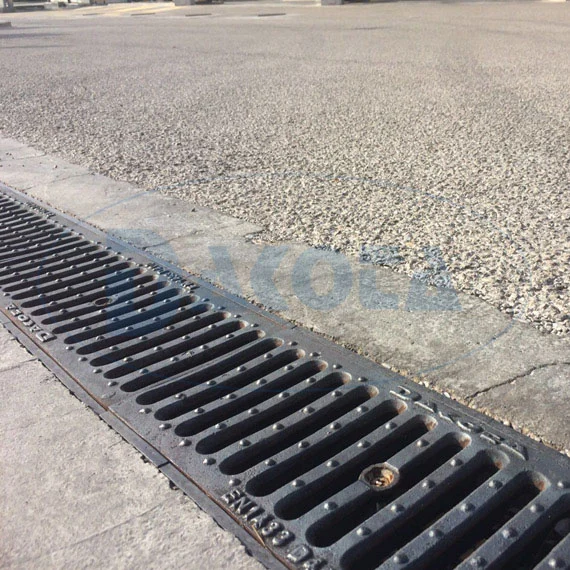

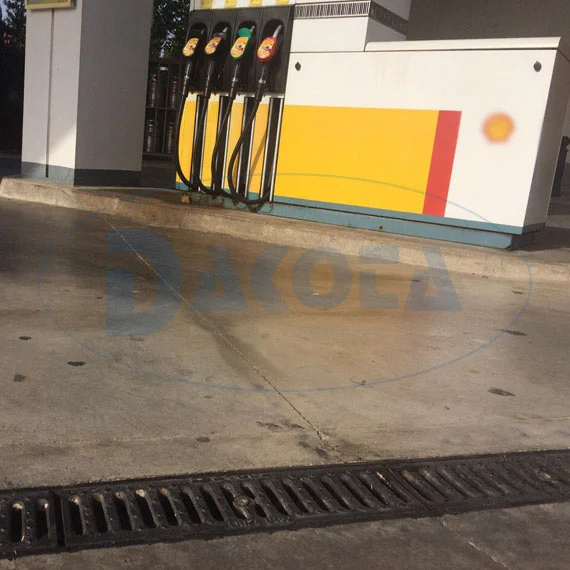

Used for the collection and drainage of rainwater and for the discharge of liquids for industrial use. The HDPE material has an excellent resistance to chemicals and organic agents and it is “self-cleaning”. This channel is shock resistant, unbreakable and can guarantee high performances in temperatures from -40° C to 100° C (-40° F to 212° F). It is available in black color, in different designs and depths.

Classifications and Standards

Technical Datasheet download symbol
Specification Sheet
  • main pic
  • full channel
  • Slider Item 3
  • Slider Item 4
  • Slider Item 5
  • Slider Item 6
  • Slider Item 7
  • Slider Item 8
  • Slider Item 9
  • Slider Item 10

 Code: POZ92-1304
Taurus 130/40 - 130 x 40 x 1,000 mm (5" x 1⁹⁄₁₆" x 39.4")

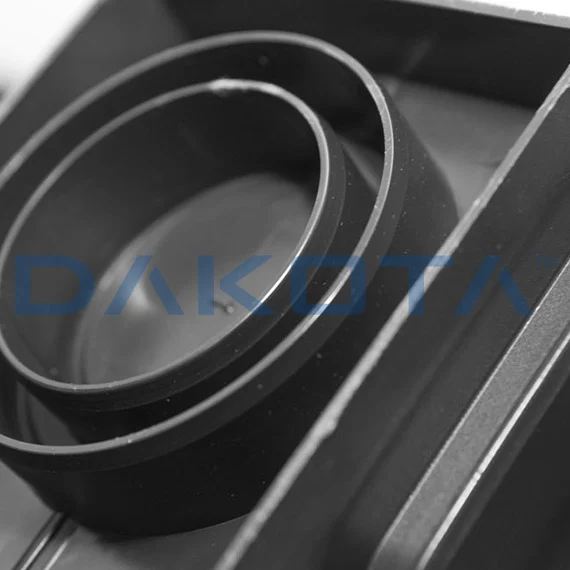

Lateral outlet diameter is 50 mm (2 in.) - bottom outlet diameters are 75, 100 mm (3, 4 in.)
Note: Measurements shown above relate to OD's (outside diameters) of pipes.
Download Legend
PDF BLUE = Declaration of Conformity
PDF RED = Technical Datasheet
  Qty:
105 Pc.

Code: POZ92-1307P
Taurus 130/75 - 130 x 75 x 1,000 mm (5" x 3" x 39.4")

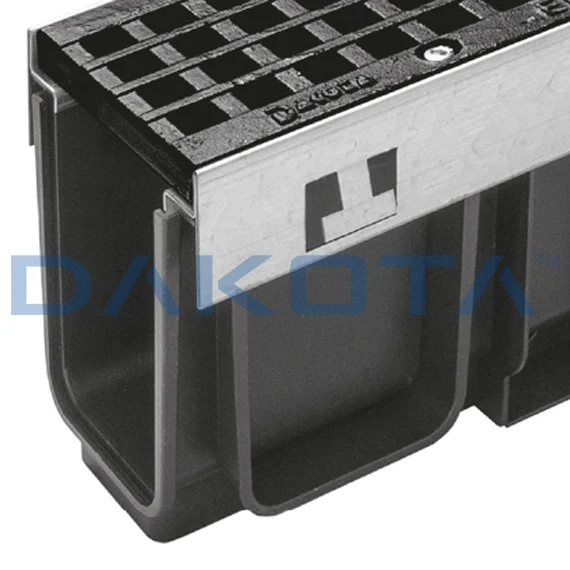

Lateral inlet diameter is 63 mm (2½ in.). Bottom outlet diameters are 75, 100 mm (3, 4 in.) or 110mm (4⅓ in.) with adaptor POX96-1319. Taurus channels are compatible with reinforcement profile (POZ95-1317) - with this profile you can get up to F900 loading capacity.
Note: Measurements shown above relate to OD's (outside diameters) of pipes.

Download Legend
PDF BLUE = Declaration of Conformity
PDF RED = Technical Datasheet
  Qty:
70 Pc.

Code: POZ92-1315P
Taurus 130/150 - 130 x 150 x 1,000 mm (5" x 6" x 39.4")

Lateral inlet diameters are 63 mm (2½ in.). Bottom outlet diameters are 75, 110 mm (3, 4⅓ in.). Taurus channels are compatible with reinforcement profile (POZ95-1317) - with this profile you can get up to F900 loading capacity.
Note: Measurements shown above relate to OD's (outside diameters) of pipes.

Download Legend
PDF BLUE = Declaration of Conformity
PDF RED = Technical Datasheet
  Qty:
105 Pc.

Code: POZ92-1315PGD
Taurus 130/150 - 130 x 150 x 1,000 mm (5" x 6" x 39.4") - with Grating

Lateral inlet diameters are 63 mm (2½ in.). Bottom outlet diameters are 75, 110 mm (3, 4⅓ in.). Taurus channels are compatible with reinforcement profile (POZ95-1317) - with this profile you can get up to F900 loading capacity.
Note: Measurements shown above relate to OD's (outside diameters) of pipes.
Download Legend
PDF BLUE = Declaration of Conformity
PDF RED = Technical Datasheet
  Qty:
105 Pc.

Drainage Channel Accessories - Taurus 130

End caps, galvanized and stainless steel reinforcement profiles, anchor bracket and gasket for channels.
Materials: HDPE (high density polyethylene) for end caps, galvanized and stainless steel for profiles and EPDM rubber gasket for the connection.

Use
The end caps are used as terminals for the channel, the profile is used as a reinforcement  for the edge of both the channel and the gasket edges.
See Taurus 130 (5") wide channels pre-assembled with gratings.

See all the gratings that will fit the Taurus 130 (5") wide channels.

Open & Closed End Caps
(2 pcs/pack)

Code: POZ95-1304TB
Size: 130 x 40 mm (5" x 1.5")
Pallet Qty: 3000

Open, Closed & Terminal End Caps (3 pcs/pack)

Code: POZ95-1307PTB
Size: 130 x 75 mm (5" x 3")
Pallet Qty: 1800

End Cap


Code: POZ95-1315PTB
Size: 130 x 150 mm (5" x 6")
Pallet Qty: 1000

End Cap for pre-assembled grating Kit

Code: POZ95-1315PTG
Size: 130 x 150 mm (5" x 6")
Pallet Qty: 1200

Lock System 130


Code: POZ95-1307B
Size: 130 mm (5")
Pallet Qty: 4000

Lock System Skat


Code: POZ95-1310B
Size: 130 mm (5")
Pallet Qty: 3000

Galvanized Steel Reinforcement Profile

Code: POZ95-1317
Size: 1000 mm (39.3")
Pallet Qty: 500

Stainless Steel Reinforcement Profile

Code: POZ95-1318
Size: 1,000 mm (39.3")
Pallet Qty: 500

Galv. steel reinforcement profile for POZ...

Code: POZ95-1317/ZP15
Size: 1000 mm (39.3")
Pallet Qty: 2000

Gasket for Channels


Code: POZ95-1319
Size: ø 100 / 110 mm (ø 4" / 4⅓")
Pallet Qty: 3750

Open/Closed End Cap


Code: POZ95-1315TB
Size: 130 x 150 mm (5" x 6")
Pallet Qty: 1600
