Drainage Products

Taurus 370 (15") Channel Drains

Used for the collection and drainage of rainwater and for the discharge of liquids. These channels are designed for heavy duty usage in industrial applications, highways, ports and airports.

The HDPE material has an excellent resistance to chemicals and organic agents and it is “self-cleaning”. This channel is shock resistant, unbreakable and can guarantee high performances in temperatures from -40° C to 100° C (-40° F to 212° F).

It is available only in black, equipped with steel reinforcement profiles and pre-assembled with cast iron gratings (the load class is determined by the gratings used).

Classifications and Standards

Technical Datasheet download symbol
Specification Sheet

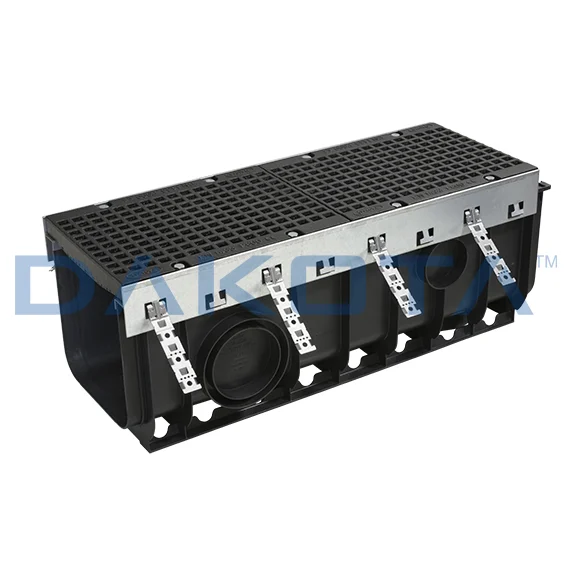

  • main pic

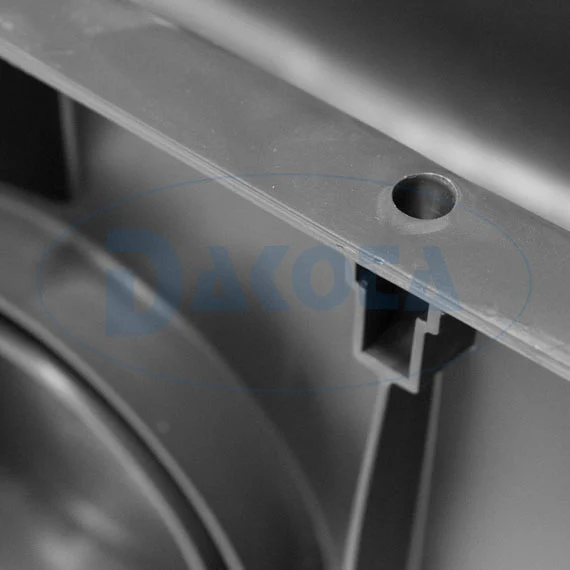

  • second
  • Usage

Code: POZ92-3835E
Taurus 370/300 - 370 x 300 x 1,000 mm (14.9" x 12" x 39.4") - with pre-assembled grating - E600

Lateral inlet diameters are 110, 160, 200 mm (4⅓, 6⅓, 8"), bottom outlet diameters are 110, 160, 200 mm (4⅓", 6⅓", 8").

Note: Measurements shown above relate to OD's (outside diameters) of pipes.

Download Legend
PDF BLUE = Declaration of Conformity
PDF RED = Technical Datasheet

Code: POZ95-3835PTB
Open/closed End Caps Set
370 x 300 mm (15" x 12")
  Qty:
12Pc.
