Outdoor Flooring Products
Level-Up Components
. . the raised floor system with fall-through protection
Patented
Product
Level Up is a flexible, fully modular system, sold in kits to enable flooring installations at any height. The system is comprised of five basic components which can be supplemented with accessories including height extenders, acoustic mats, spacer pads for laying pavers and decktiles for wood and wood effect finishes.
| Code | Product | Size mm (in.) WxDxL | Pk | Pallet Qty. | UM |
|---|---|---|---|---|---|

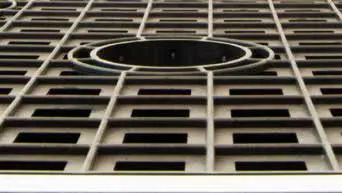

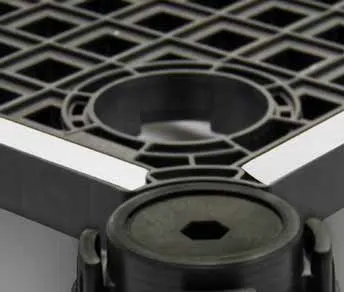

| TER09-1125 | Laying Module | 600 x 600 x 38 (24 x 24 x 1½) | 15 | 60 pcs. | 1 pc. |
| TPOZ95-1313 | Galvanized Reinforcement Bar | 34 x 482 x 19 (1⁵⁄₁₆ x 19 x ¾) | 30 | 2,820 pcs. | 1 pc. |

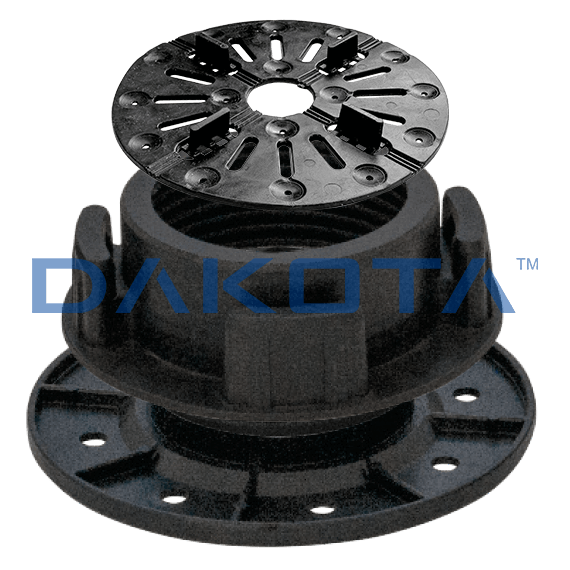

| TER09-1124 | 38 pcs. adjustable support for Level-Up + 33 pcs Rubber Tile Spacers (TER09-1131) | from 48 to 74 (from 1⅞ to 2¹⁵⁄₁₆) | 1 box | 15 boxes. | box |
| TER09-1130 | Extension h. 25mm (1") | h. 25mm (h. 1") | 38 | 2,128 pcs. | 1 pc. |
| TER09-1129 | Extension h. 50mm (2") | h. 50mm (h. 2") | 38 | 1,064 pcs. | 1 pc. |
| TER09-1119 | Hexagonal Height Adjustment pipe wrench | hex size 20mm (hex. ¹³⁄₁₆") | 5 | - | 1 pc. |
Download Legend
PDF GREEN= Specification Sheet
PDF RED = Technical Datasheet
PDF GREEN= Specification Sheet
PDF RED = Technical Datasheet
