Garden and Landscape
Dak Rock
gravel stabilization grids
Dak-Rock is an HDPE or PP gravel and stabilization geo-grid, resistant to frost. It guarantees a compact surface for both pedestrian and vehicular areas and provides perfect water drainage.
Thanks to its highly containing honeycomb structure for gravel and pebbles and to the layer of high-strength geotextile fabric, rainwater can be absorbed more evenly by the ground, ensuring uniform drainage management and a stable and safe surface for pedestrians and vehicles.
Dak-Rock structure is made of HDPE or PP and non-woven geotextile is made of PP.

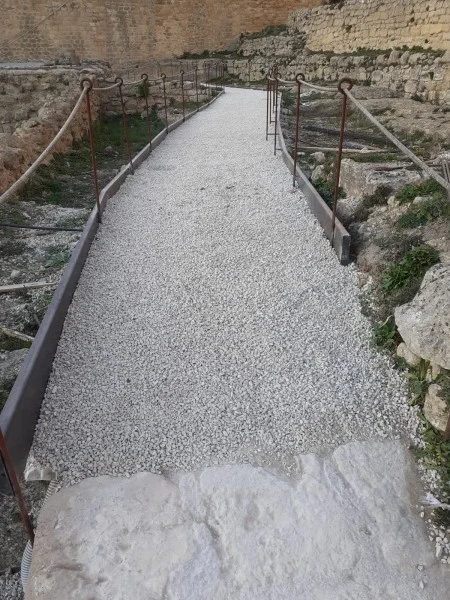

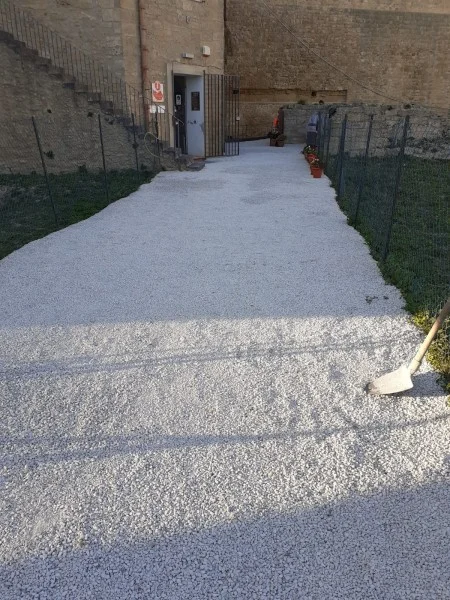

Dak-Rock is used to stabilize gravel and pebbles for garden paths, pedestrian walkways, parking slots, terraces and various other areas for games, picnics, relaxation or recreational activities and staging.
Load class test according to EN ISO 844:
- Test on empty structure = 140 T/m² (28,674 lbs sq.ft)
- Test on filled (gravel) structure = 400 T/m² (81,926 lbs sq.ft
PDF GREEN= Specification Sheet
PDF RED = Technical Datasheet
| Code | Product | Size mm (in.) | Pk | Pallet Qty. | UM |
|---|---|---|---|---|---|

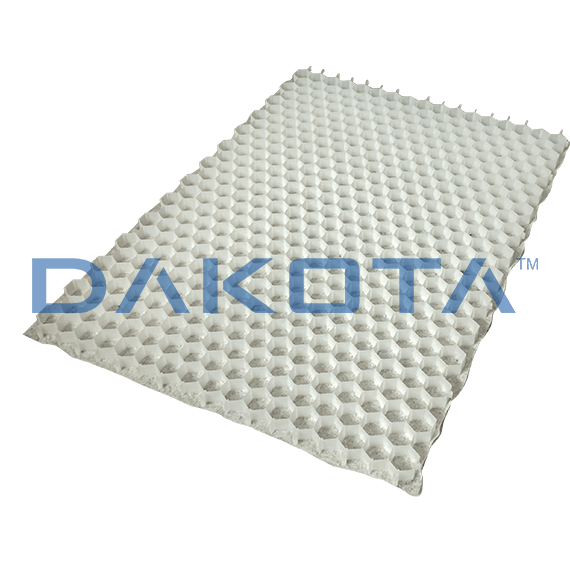

| GAR01-0300 | Dak-Rock - HDPE Gravel Stabilization Grid | 1,123 x 795 x 30 (44³⁄₁₆ x 31⁵⁄₁₆ x 1³⁄₁₆) | 1 pc. | 38 pcs. | 1 pc. |
| GAR01-0300H | Dak-Rock - HDPE Gravel Stabilization Grid | 1,123 x 795 x 30 (44³⁄₁₆ x 31⁵⁄₁₆ x 1³⁄₁₆) | 1 pc. | 80 pcs. | 1 pc. |

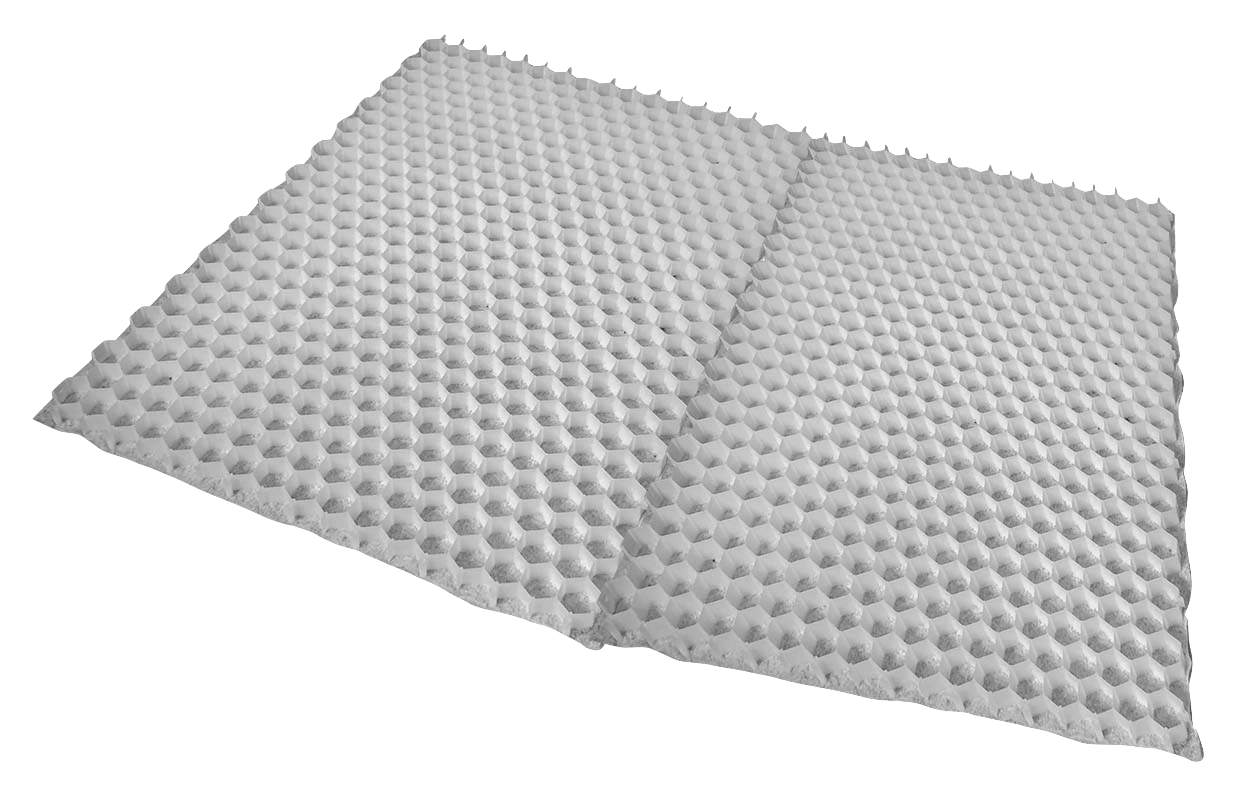

| GAR01-0300H2 | Dak-Rock - HDPE Gravel Stabilization Grid - Folded | 1,123 x 1,590 x 30 (44³⁄₁₆ x 62⅝ x 1³⁄₁₆) | 1 pc. | 40 pcs. | 1 pc. |
| GAR01-0400 | Dak-Rock - PP Gravel Stabilization Grid | 1,123 x 795 x 30 (44³⁄₁₆ x 31⁵⁄₁₆ x 1³⁄₁₆) | 1 pc. | 38 pcs. | 1 pc. |
| GAR01-0400H | Dak-Rock - PP Gravel Stabilization Grid | 1,123 x 795 x 30 (44³⁄₁₆ x 31⁵⁄₁₆ x 1³⁄₁₆) | 1 pc. | 80 pcs. | 1 pc. |
| GAR01-0400H2 | Dak-Rock - PP Gravel Stabilization Grid - Folded | 1,123 x 1,590 x 30 (44³⁄₁₆ x 62⅝ x 1³⁄₁₆) | 1 pc. | 40 pcs. | 1 pc. |
