Dak Rock Heavy
ground paving grids
Dak-Rock Heavy is a 500 mm x 500 mm x 39 mm (20" x 20" x 1⁹⁄₁₆") ground reinforcement paving solution designed to improve natural water drainage and at the same time to prevent ground erosion. It is a perfect alternative to set bricks, flagstones, openwork paving slabs and different kinds of concrete based surfaces.

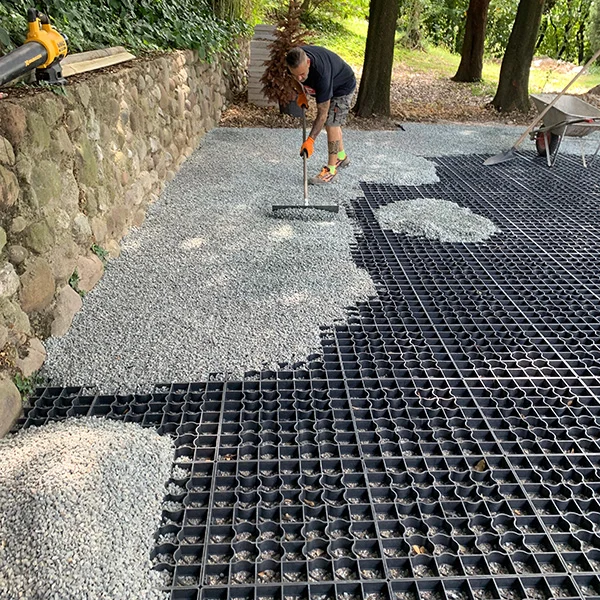

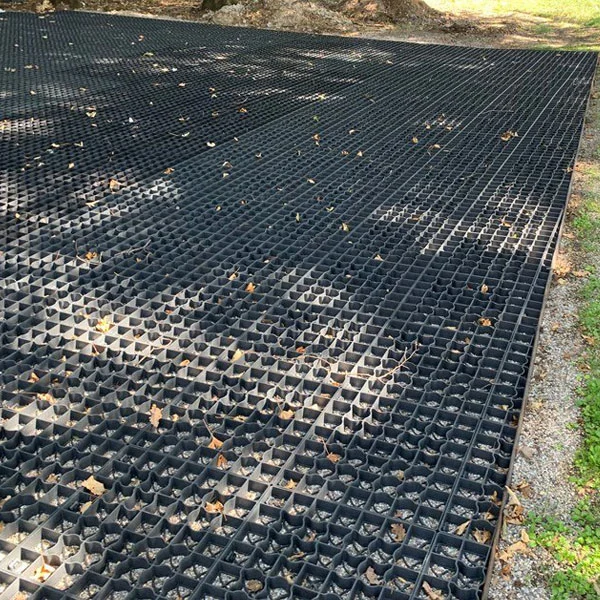

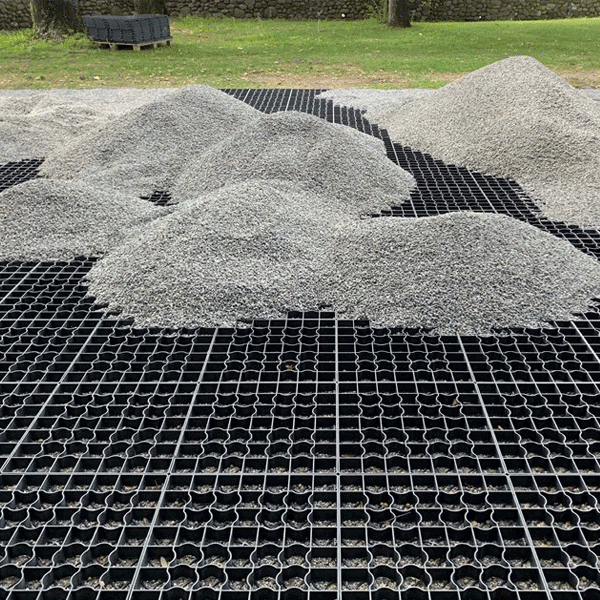

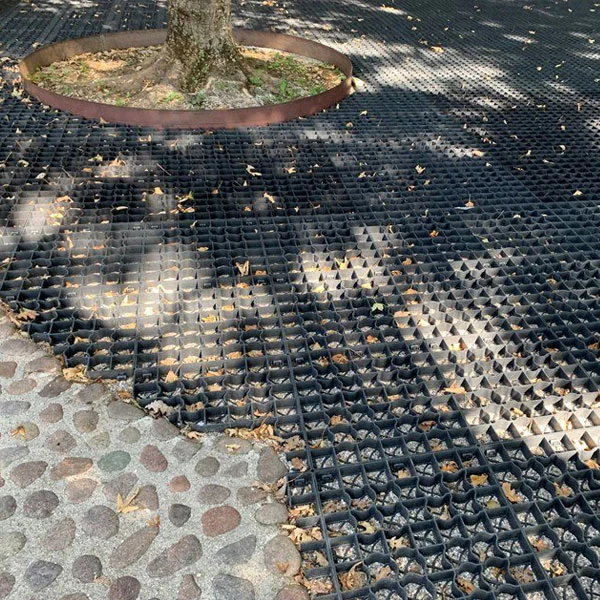

An innovative interlocking system enables the connection of the panels to create a continuous surface, which become completely invisible once filled with aggregate or grass, preserving the natural character of the area.
Made of Polypropylene (PP).
It is used for the reinforcement and strengthening of grass layers destined for parking cars and/or recreational activities and/or staging.
Load Capacities
The average values of load class tests conducted according to EN ISO 844 are as follows:
The average values of load class tests conducted according to EN ISO 844 are as follows:
- Load at 3.8 mm (⅛”): 49.49 kN (11,125 lbf)
- Max Load: 49,81 kN (11,198 lbf)
- Deformation at max load: 3.50 mm (⅛”)
- Stress: 76.97 N/mm² (11,163 lbs sq. in)
- Max load grid: 2,232 kN (501,773 lb/f)
- Load per sqm: 910 tonne ( 1,003 US tons)
![Dak Rock Heavy Technical](https://dakota-na.com/images/Geo/Dak Rock Heavy tech.webp)
Code | Product | Size mm (in.) | Pk | Pallet Qty. | UM |
---|---|---|---|---|---|
GAR01-0022N | Dak-Rock Heavy Ground Paving Grid - Black | 500 x 500 x 39 (20 x 20 x 1⁹⁄₁₆) | 1 pc. | 288 pcs. | 1 pc. |
GAR01-0022GV | Dak-Rock Heavy Ground Paving Grid - Green | 500 x 500 x 39 (20 x 20 x 1⁹⁄₁₆) | 1 pc. | 288 pcs. | 1 pc. |
