Garden and Landscape
Multi-use Draining Tiles
for outdoor & indoor use

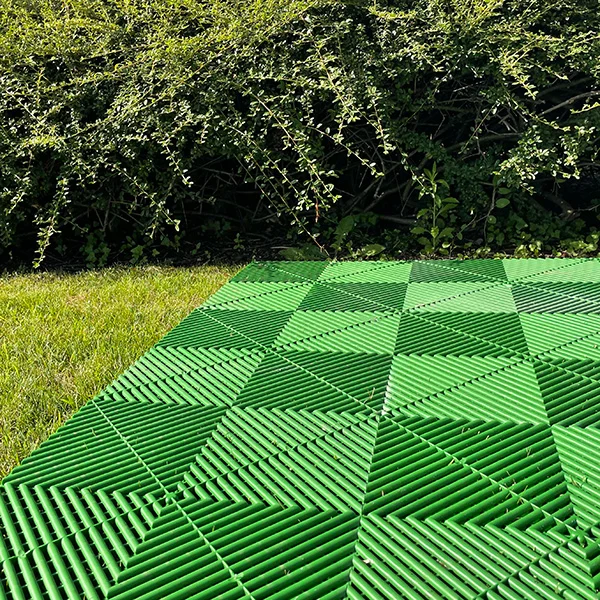

Draining tiles have multiple areas of use in the garden and around the home for creating walk-on areas. They are also extensively used for indoor applications in commercial and industrial settings for creating defined areas in showrooms, for use around machines and work benches in factories and for many other purposes.

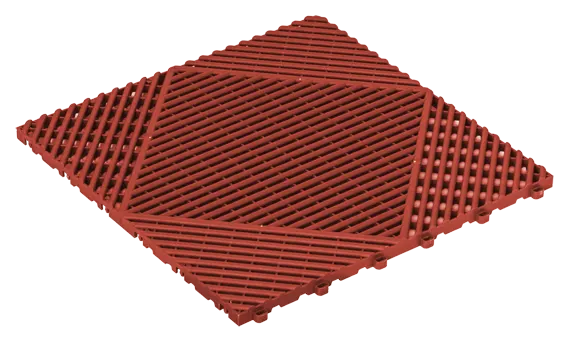

The tiles are available in green, red and gray and are designed to interlock. Each tile measures 400mm x 400mm x 18mm (15¾'' x 15¾'' x ¾''). The tiles can be used on their own or together with a range of accessory items to create sloped edges for a completely finished look.
Made of PP (polypropylene).
Alternative uses for residential lawns, or garden furniture, and suitable for use on grass or screed to create areas for recreational activities and/or walkways.
Industrial and commercial uses to create walkways, work areas, defined sales areas in showrooms, etc.
Accessories for draining tiles
The accessories are designed to provide a perfect sloped edge finishing to remove any trip hazard. The side ramps and corners have a modular interlocking system.
Types
- Ramp with “female” (ref. 02) or “male” interlocking system (ref. 03)
- Corner for with “female”(ref. 04) or “female-female” (ref. 05)
Ramps are sold in bags of 10 pieces/each.
Both ramps and corners are made of PP (polypropylene).
Ramps and corners can be easily matched together and the locking system guarantees quick positioning and use.
PDF GREEN= Specification Sheet
PDF RED = Technical Datasheet
| Code | Ref. | Product | Size mm (in.) | Pk | Pallet Qty. | UM |
|---|---|---|---|---|---|---|
| GAR01-0015V | - | Green draining tile | 400 x 400 x 18 (16 x 16 x ¹¹⁄₁₆) | 6 pcs. | 324 pcs. | 1 pc. |
| GAR01-0015R | - | Red draining tile | 400 x 400 x 18 (16 x 16 x ¹¹⁄₁₆) | 6 pcs. | 324 pcs. | 1 pc. |
| GAR01-0015GC | - | Gray draining tile | 400 x 400 x 18 (16 x 16 x ¹¹⁄₁₆) | 6 pcs. | 324 pcs. | 1 pc. |
| Accessories | ||||||
| GAR01-0030V | 02 | Ramp with 'female' hooking for draining tile - Green | 400 x 60 x 18 (16 x 2⅜ x ¹¹⁄₁₆) | 25 pcs. | 1,575 pcs. | 1 pc. |
| GAR01-0030R | 02 | Ramp with 'female' hooking for draining tile - Red | 400 x 60 x 18 (16 x 2⅜ x ¹¹⁄₁₆) | 25 pcs. | 1,575 pcs. | 1 pc. |
| GAR01-0030GC | 02 | Ramp with 'female' hooking for draining tile - Gray | 400 x 60 x 18 (16 x 2⅜ x ¹¹⁄₁₆) | 25 pcs. | 1,575 pcs. | 1 pc. |
| GAR01-0031V | 03 | Ramp with 'male' hooking for draining tile - Green | 400 x 60 x 18 (16 x 2⅜ x ¹¹⁄₁₆) | 25 pcs. | 1,575 pcs. | 1 pc. |
| GAR01-0031R | 03 | Ramp with 'male' hooking for draining tile - Red | 400 x 60 x 18 (16 x 2⅜ x ¹¹⁄₁₆) | 25 pcs. | 1,575 pcs. | 1 pc. |
| GAR01-0031GC | 03 | Ramp with 'male' hooking for draining tile - Gray | 400 x 60 x 18 (16 x 2⅜ x ¹¹⁄₁₆) | 25 pcs. | 1,575 pcs. | 1 pc. |
| GAR01-0032V | 04 | Corner with 'female' hooking for draining tile - Green | 60 x 60 x 18 (2⅜ x 2⅜ x ¹¹⁄₁₆) | 100 pcs. | 14,400 pcs. | 1 pc. |
| GAR01-0032R | 04 | Corner with 'female' hooking for draining tile - Red | 60 x 60 x 18 (2⅜ x 2⅜ x ¹¹⁄₁₆) | 100 pcs. | 14,400 pcs. | 1 pc. |
| GAR01-0032GC | 04 | Corner with 'female' hooking for draining tile - Gray | 60 x 60 x 18 (2⅜ x 2⅜ x ¹¹⁄₁₆) | 100 pcs. | 14,400 pcs. | 1 pc. |
| GAR01-0033V | 05 | Corner with 'female-female' hooking for draining tile - Green | 60 x 60 x 18 (2⅜ x 2⅜ x ¹¹⁄₁₆) | 100 pcs. | 14,400 pcs. | 1 pc. |
| GAR01-0033R | 05 | Corner with 'female-female' hooking for draining tile - Red | 60 x 60 x 18 (2⅜ x 2⅜ x ¹¹⁄₁₆) | 100 pcs. | 14,400 pcs. | 1 pc. |
| GAR01-0033GC | 05 | Corner with 'female-female' hooking for draining tile - Gray | 60 x 60 x 18 (2⅜ x 2⅜ x ¹¹⁄₁₆) | 100 pcs. | 14,400 pcs. | 1 pc. |
