Drainage Products
PLUS Catch Basins
Plastic Catch Basins for Drainage Systems

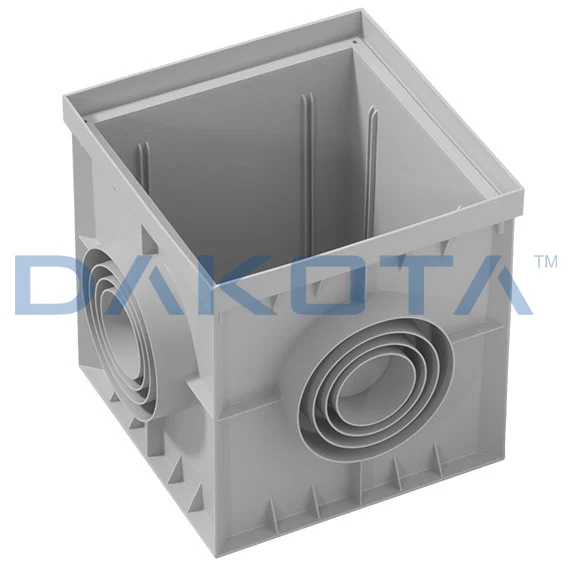

The "Plus" drainage inspection chambers, also known as a catch basins or catch pits, are available in various sizes, from 200 to 550 mm (8" to 21½") square in gray and green colors.
Main characteristics:
- Light weight for easy transport, positioning and installation, even by a single person;

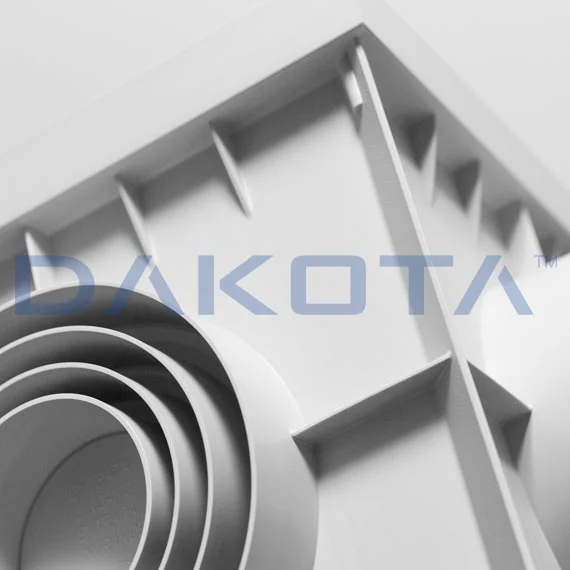

- High resistance thanks to the reinforcements and ribs at the sides;

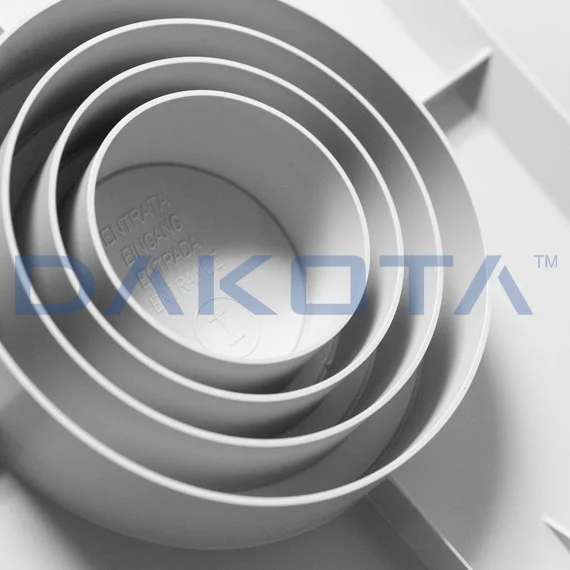

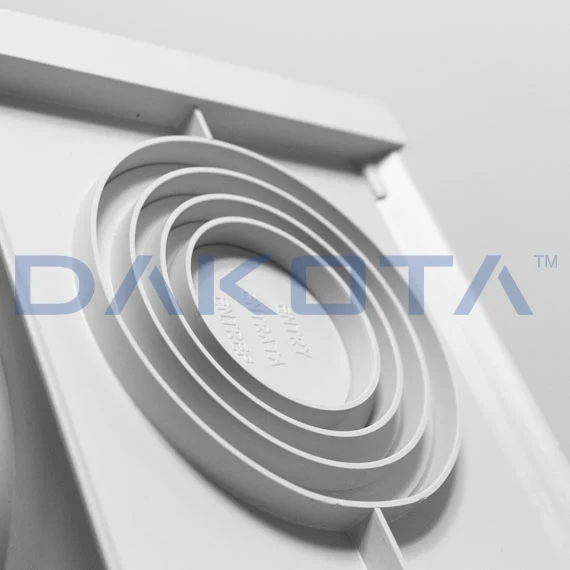

- Pipes of many sizes can easily be fitted thanks to the special pre-cut concentric shapes for the side holes;
- Compatible with a range of matched sizes of PP inspection chamber covers and gratings.
- Slot-in plates available to create siphonic trap for odor control.
Materials: Made of PP (polypropylene).
Use: Used as an alternative to traditional concrete catch basins for rain and storm water collection.
Code | Product | Size mm (in.) WxL | Pkg. | Pallet Qty. | UM |
---|---|---|---|---|---|

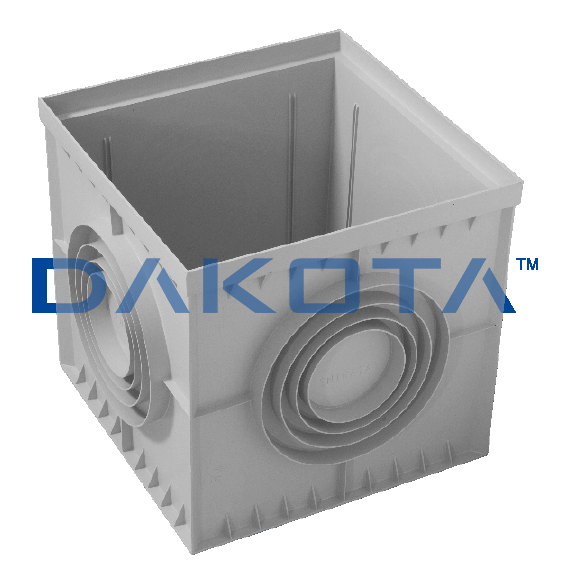

POZ01-1372 | Catch-Pit Plus | 200 x 200 (8" x 8") | 1 pc. | 150 pcs. | 1 pc. |
POZ01-1372S | Export Catch-Pit Plus | 200 x 200 (8" x 8") | 1 pc. | 240 pcs. | 1 pc. |
POZ01-1372V | Green Catch-Pit Plus | 200 x 200 (8" x 8") | 1 pc. | 150 pcs. | 1 pc. |
POZ01-1372B | Catch-Pit Plus | 250 x 250 (10" x 10") | 1 pc. | 160 pcs. | 1 pc. |
POZ01-1372BV | Green Catch-Pit Plus | 250 x 250 (10" x 10") | 1 pc. | 160 pcs. | 1 pc. |
POZ01-1373 | Catch-Pit Plus | 300 x 300 (12" x 12") | 1 pc. | 48 pcs. | 1 pc. |
POZ01-1373S | Export Catch-Pit Plus | 300 x 300 (12" x 12") | 1 pc. | 96 pcs. | 1 pc. |
POZ01-1373V | Green Catch-Pit Plus | 300 x 300 (12" x 12") | 1 pc. | 48 pcs. | 1 pc. |
POZ01-1374 | Catch-Pit Plus | 400 x 400 (16" x 16") | 1 pc. | 18 pcs. | 1 pc. |
POZ01-1374S | Export Catch-Pit Plus | 400 x 400 (16" x 16") | 1 pc. | 36 pcs. | 1 pc. |
POZ01-1374 | Green Catch-Pit Plus | 400 x 400 (16" x 16") | 1 pc. | 27 pcs. | 1 pc. |
POZ01-1371 | Catch-Pit Plus | 550 x 550 (21.7" x 21.7") | 1 pc. | 20 pcs. | 1 pc. |
