Drainage Products
Rainwater Gullies / Catch Pits / Sumps

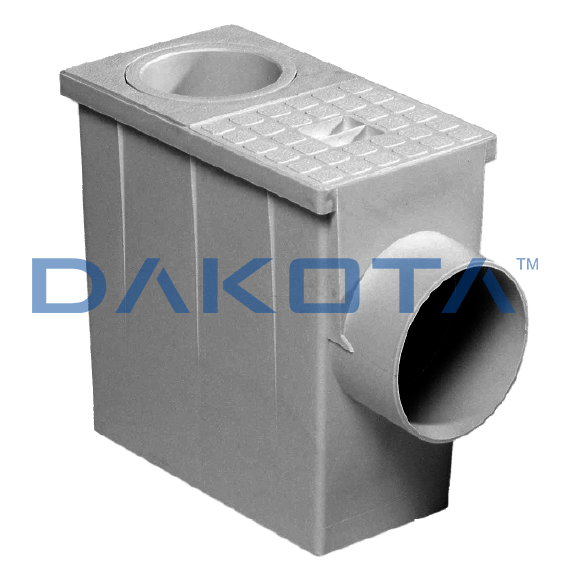

"Pluvial" Gully
Stormwater catch basin
The "pluvial" gully pot is designed for the collection of storm water from gutter downpipes and its disposal into drainage systems.
A bulkhead (provided with each catch basin) enables a perfect siphon effect, preventing the return of bad odors. The bulkhead can be easily removed for inspection and/or cleaning.
Main characteristics:
- Light weight and easy to install;
- High resistance thanks to the reinforcements and ribs at the sides;
- Adaptor accessories available for both round and square down pipes. Sizes: round 80mm - 100mm (3⅕-4 in.)and 90-110 mm (3½-4⅓ in.), square 80mm - 100mm (3⅕-4 in.);
- Supplied with siphon bulkhead - prevents bad odors;
- Sealed design prevents comination and clogging with debris and leaves.
Materials: Made of PP (polypropylene).
Use: Collection and dispersal of storm water.
Code | Product | Size mm (in.) WxDxL | Pkg. | Pallet Qty. | UM |
---|---|---|---|---|---|
TER06-1385 | "Pluvial" Catch-Pit Gray with 80/100 inlet | 235 x 125 x 220mm (9¼" x 5" x 8⅔") | 18 pcs. | 216 pcs. | 1 pc. |
TER06-1385SN | "Pluvial" Catch-Pit Black with 80/100 inlet | 235 x 125 x 220mm (9¼" x 5" x 8⅔") | 18 pcs. | 216 pcs. | 1 pc. |
TER06-1385S | "Pluvial" Export Catch-Pit Gray with 90/110 inlet | 235 x 125 x 220mm (9¼" x 5" x 8⅔") | 18 pcs. | 216 pcs. | 1 pc. |
ACCESSORIES | |||||

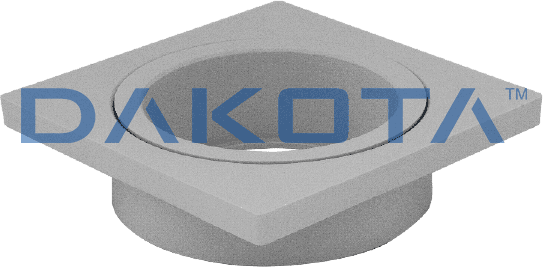

TER06-1390 | Round Inlet Junction | 80 - 100mm (3⅕-4 in.) | 50 pcs. | - | 1 pc. |
TER06-1390S | Export Round Inlet Junction | 90 - 110mm (3½-4⅓ in.) | 50 pcs. | - | 1 pc. |

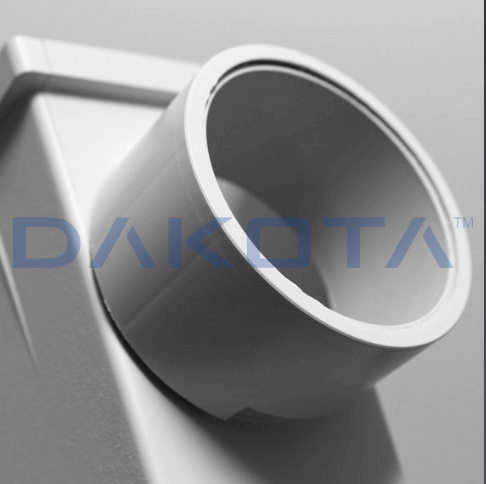

TER06-1392 | Round Outlet adaptor to 110mm (4⅓") | 110mm (4⅓") | 84 pcs. | - | 1 pc. |

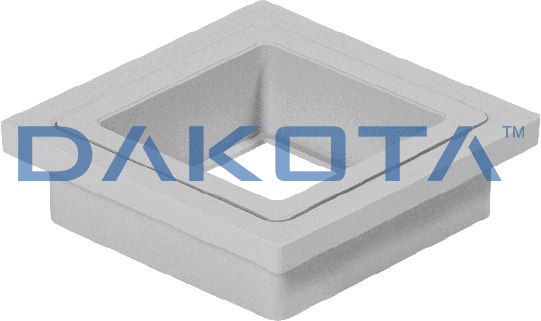

TER06-1391 | Square Junction | 80 - 100mm (3⅕-4 in.) | 50 pcs. | - | 1 pc. |

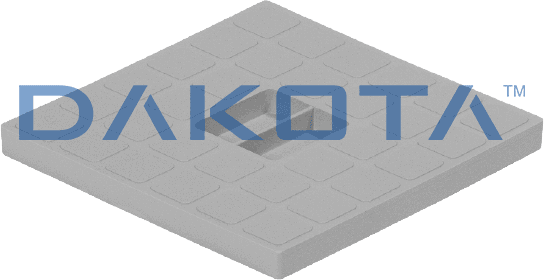

TER06-1385C | Cover for "Pluvial" Catch-Pit | 125 x 125mm (5" x 5") | 600 pcs. | - | 1 pc. |

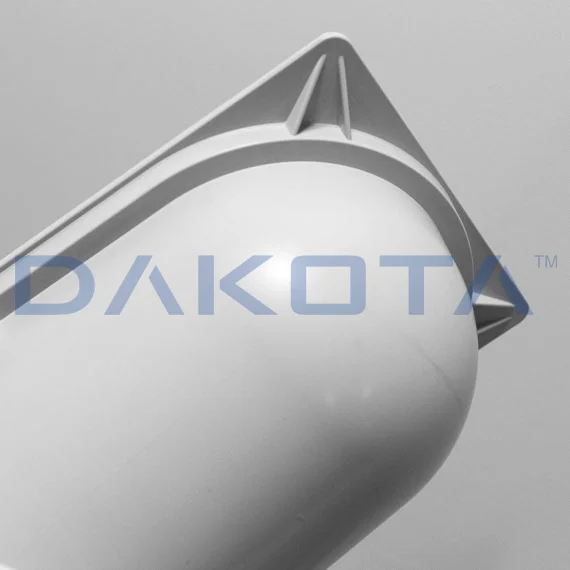

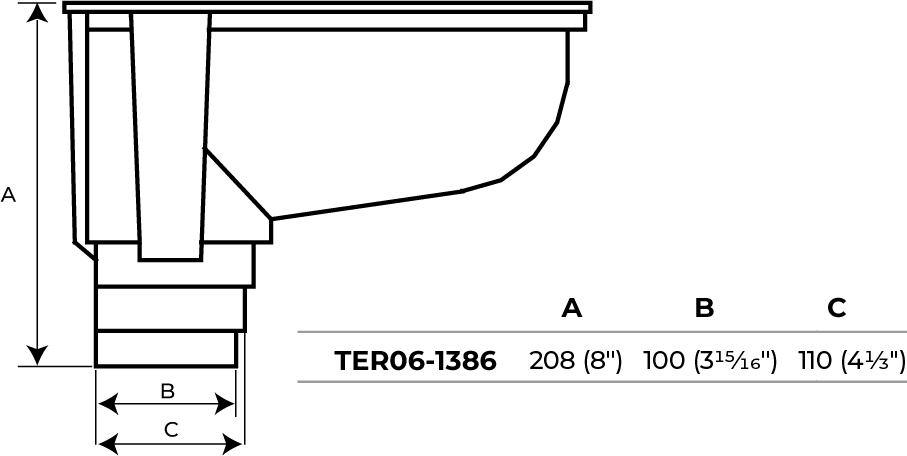

"Eco-Pluvial" Gully
Stormwater catch basin
The eco-pluvial sump is a device used to collect water from the eaves/downpipes and to drain it.
It has several components:
- a tilting anti-backflow barrier, preventing the return of bad odors;
- a removable basket for collecting debris;
- pilasters to provide support;
- a cover with different sizes, 80 to 125mm (3&frac;25 to 5") for the inlet pipe;

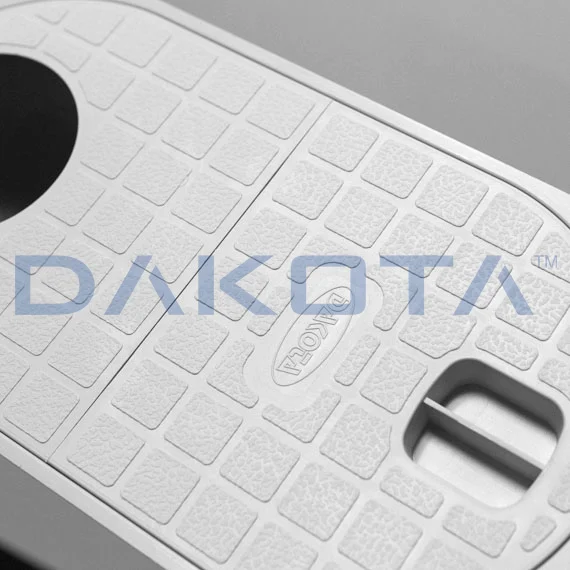

- photo-etched "open-closed" cover (customizable);

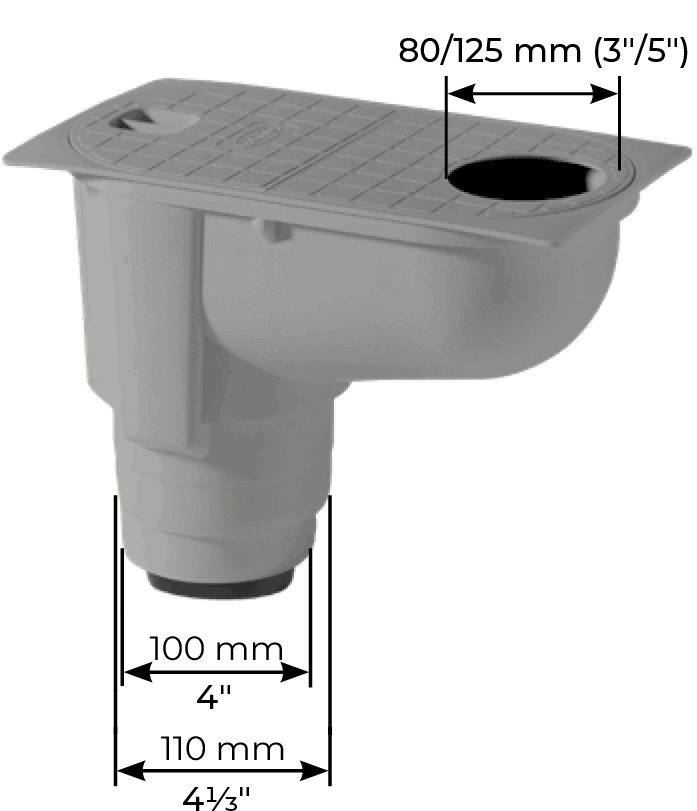

- an outlet fitting for a drain pipe with a diameter of 80/100/110mm (3&frac;25 to 4");
- a limit stop to control the water flow.
Materials: Made of PP (polypropylene).
Use: Collection and dispersal of storm water.
Code | Product | Size mm (in.) WxDxL | Pkg. | Pallet Qty. | UM |
---|---|---|---|---|---|
TER06-1386 | "Eco-Pluvial" Catch-Pit Gray | 235 x 125 x 220 mm (9¼" x 5" x 8⅔") | 18 pc. | 90 pcs. | 1 pc. |
TER06-1386N | "Eco-Pluvial" Catch-Pit Black | 235 x 125 x 220 mm (9¼" x 5" x 8⅔") | 18 pc. | 90 pcs. | 1 pc. |
TER06-1386M | "Eco-Pluvial" Catch-Pit Brown | 235 x 125 x 220 mm (9¼" x 5" x 8⅔") | 18 pc. | 90 pcs. | 1 pc. |
