Universal Joist Head
to convert Arkimedes paver supports

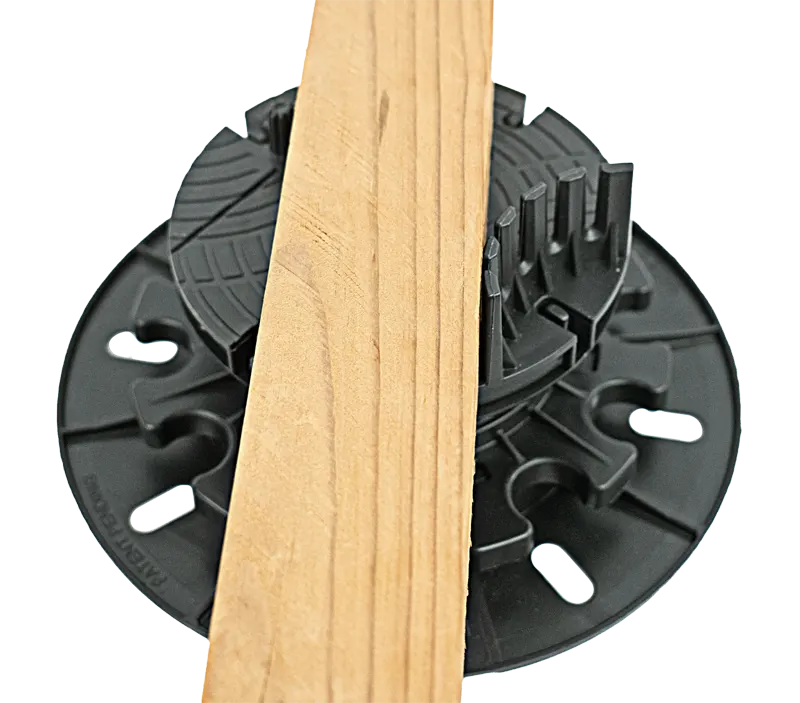

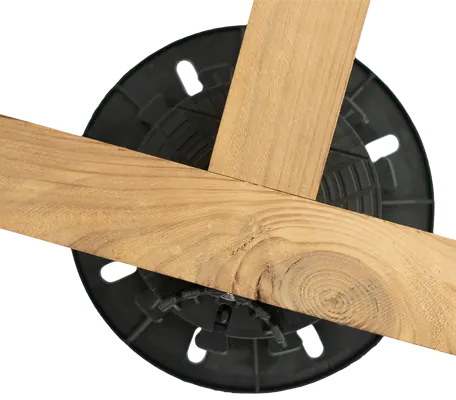

Universal decking head for converting Arkimedes paver supports to enable them to support joists. Steel, aluminum or wood joists of any size up to a maximum width of 75mm (3'') can be used. The pin can also be used to make “T” connections between joists.
- Converts Arkimedes Paver Supports into Joist supports.
- Works with joist widths minimum 25mm (1") to maximum 75mm (3").
- Equipped with self-centering of the joist functionality due to the 5 fixing slots.
The installation of the head increases the total height of the support by 11.5mm (⁷⁄₁₆'').
Made of recycled PP (polypropylene).
Note: Not suitable for Archimedes 10.
| Code | Product | Size mm (in.) | Pk | Pallet Qty. | UM |
|---|---|---|---|---|---|
| TER09-1142 | Universal decking head conversion for Arkimedes Paving Supports | ø 122mm x h. 51mm (ø 4¾" x 2") | 30 pcs. | 1,350 pcs. | 1 pc. |
