Outdoor Flooring Products

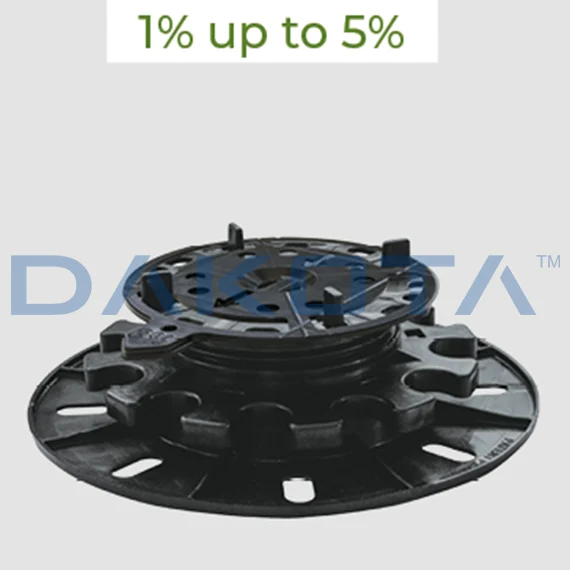

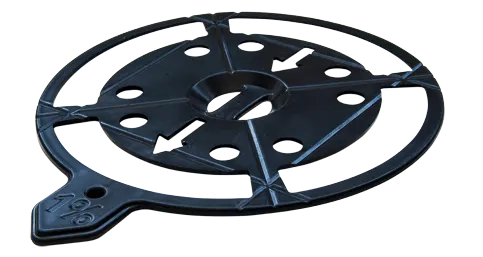

Clever Slope Regulators
Leveling rubber discs for slope compensation.
Diameter 120mm (4¾''), available in 1%, 3% and 5% slopes.
Made of thermoplastic rubber.

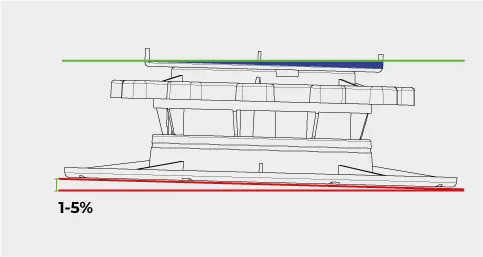

The Clever slope regulators, as standard, enable compensation for slopes from 1% - 5%. The regulators can be used in combinations and multiples to create the exact correction required.

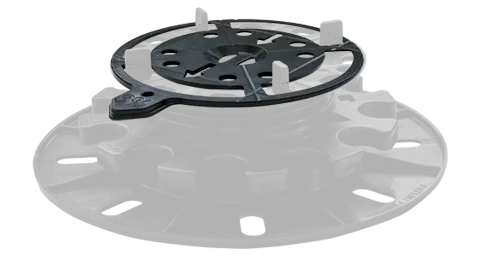

Simple to use, just put them on the head of the support (with the arrow pointing in the direction of the slope). Twist for a final adjustment - moving the arrow sideways to the slope reduces the degree of compensation.
Clever guarantees the capability to have a perfectly flat surface and, at the same time to reduce walkover noise.
PDF GREEN= Specification Sheet
PDF RED = Technical Datasheet
| Code | Product | Size mm (in.) | Pack | Box | Pallet Qty. | UM |
|---|---|---|---|---|---|---|
| TER09-1143/C1 | Clever for Arkimede™ - slope 1% | 120mm (4¾") | 10 pcs. | 360 pcs. | 32,400 pcs. | 1 pc. |
| TER09-1143/C3 | Clever for Arkimede™ - slope 3% | 120mm (4¾") | 10 pcs. | 360 pcs. | 32,400 pcs. | 1 pc. |
| TER09-1143/C5 | Clever for Arkimede™ - slope 5% | 120mm (4¾") | 10 pcs. | 180 pcs. | 16,200 pcs. | 1 pc. |

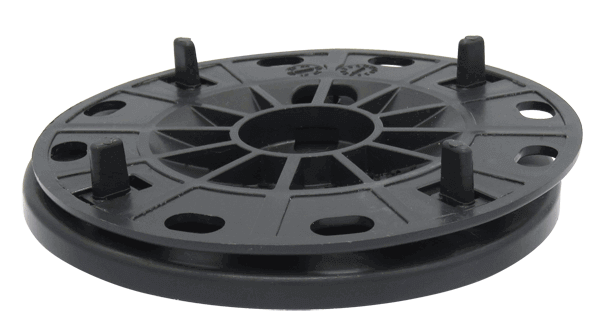

Self-Leveling Heads
Self Leveling heads are available as an accessory for fitting to Arkimede™ fixed head paving supports (not Arkimede™ 10) to convert them to self-leveling. They can be used as an alternative to the Clever system.
The self-leveling head can be fitted on top of the fixed head after first removing the spacer tabs. The installation of the self-leveling head increases the total height of the support by 14mm (⁹⁄₁₆"). It guarantees compensation for 0% to 5% slopes.

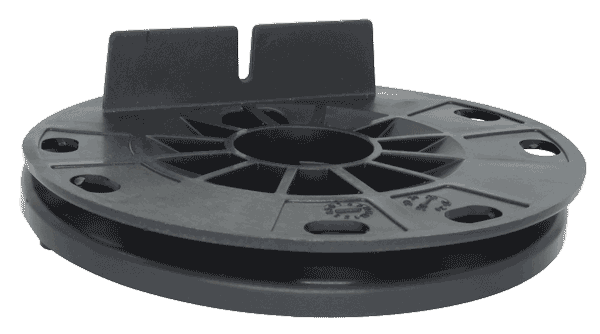

Heads are available with a choice of 2mm (⁵⁄₆₄"), 4mm (⁵⁄₃₂") fins for paver spacing, or with a flange for joist support (converts paving support to joist support). For use with Archimedes 18, 60 & 115 paving supports only. Not compatible with decking joist supports.
Made of recycled PP (polypropylene).
| Code | Product | Size mm (in.) WxDxL | Pk | Pallet Qty. | UM |
|---|---|---|---|---|---|
| TER09-1142TB2 | Self-leveling Head paving 2mm (⁵⁄₆₄") | 120mm (4¾") | 15 | 1,890 pcs. | 1 pc. |
| TER09-1142TB4 | Self-leveling Head paving 4mm (⁵⁄₃₂") | 120mm (4¾") | 15 | 1,890 pcs. | 1 pc. |
| TER09-1142TB1 | Self-leveling Head with upstand for joists | 120mm (1⁹⁄₁₆") | 15 | 1,890 pcs. | 1 pc. |
