Lateral Finishing Solutions
Plastic Kit for lateral finishing

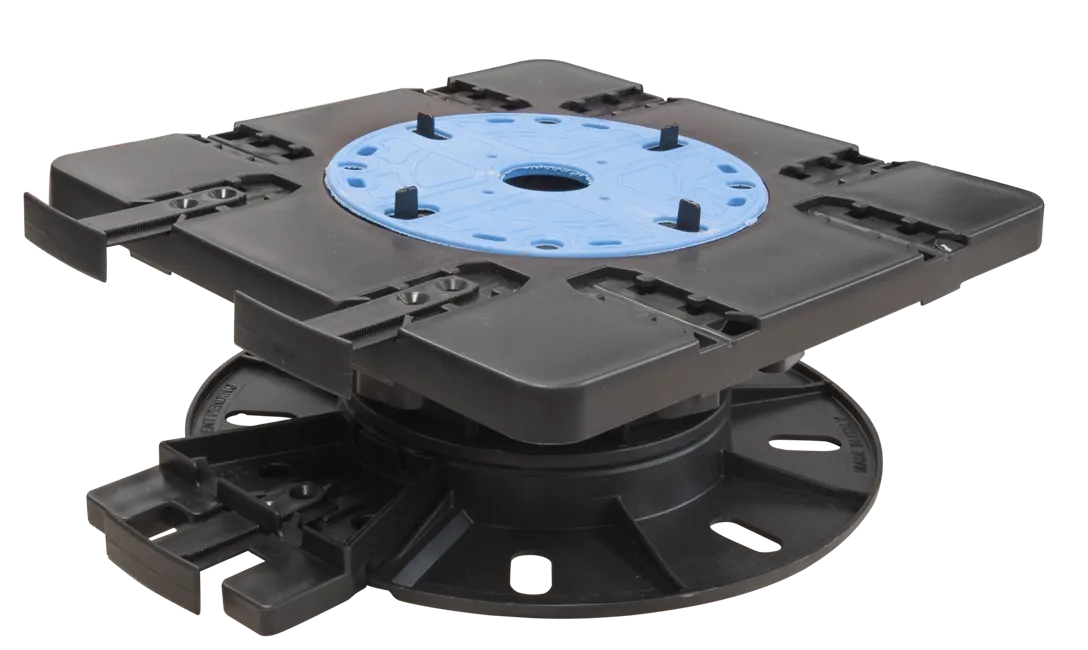

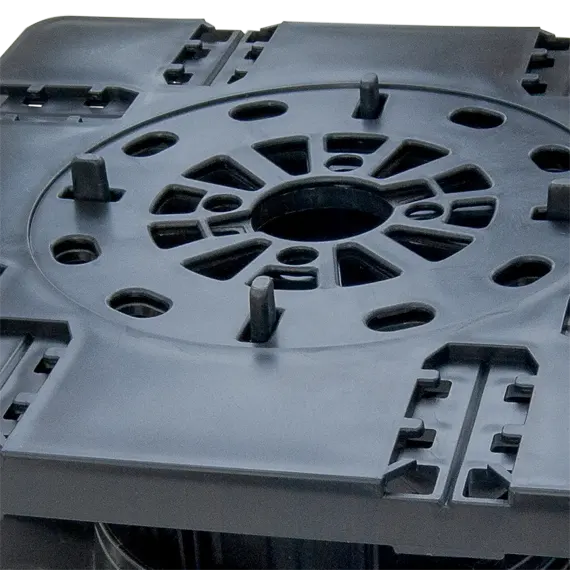

The Top Plate and Lateral Clip are made of PP, they are used for the lateral (vertical) finishing of the edges of the raised floor in the absence of a lateral wall. Specifically designed for application with Arkimede™ paving supports only.
Made of PP (Polypropylene).

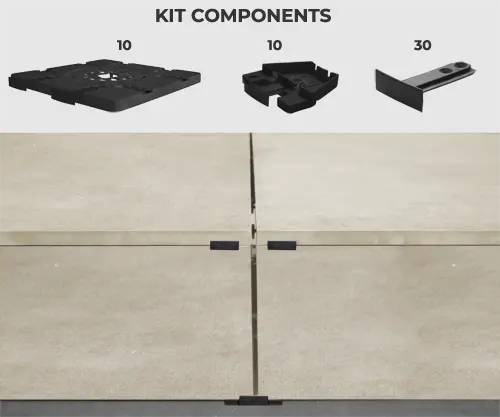

Kit comprises: Kit of 10 top plates, 10 base supports and 30 tile fixing clips.

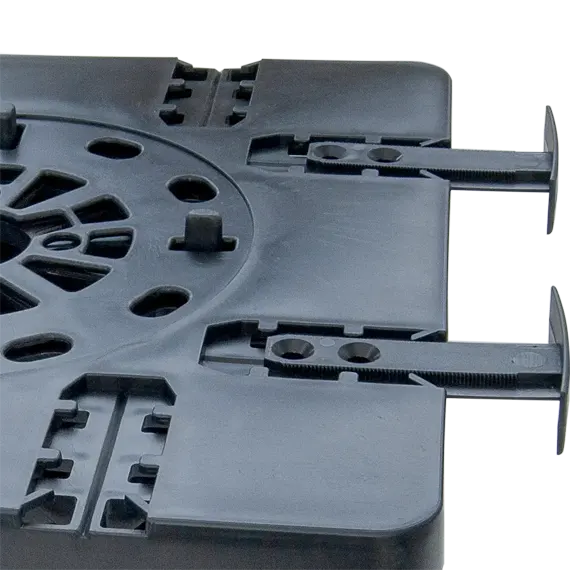

The top plate and adjustable clips, combined with the base support retainers that clip into the pedestal base plates, allow the vertical fixing of tiles of different thickness, from 8 to 38 mm (⁵⁄₁₆" to 1½"), in a very easy and simple way.
The Lateral Finishing Kit will work with Arkimede™ 35, 41, 60 and 115 paving pedestal supports.
| Code | Product | Size mm (in.) | Pk | Pallet Qty. | UM |
|---|---|---|---|---|---|

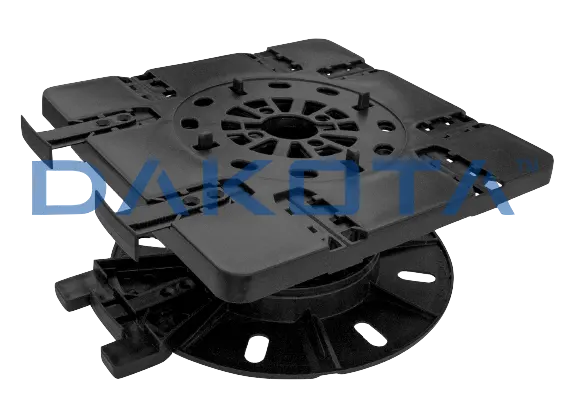

| TER09-1152/3BPL | Kit of 10 plates, 10 lateral base supports and 30 tile fixing clips for lateral finishing | 204 x 204 (8 x 8) | set | 144 pcs. | set |
| TER09-1143/G | Anti-noise rubber shim for paving heads | ø 120 x 2 (ø 4¾ x ⁵⁄₆₄) | 180 pcs. | 16,200 pcs. | 1 pc. |
PDF GREEN= Specification Sheet
PDF RED = Technical Datasheet
Lateral Finishing Clips

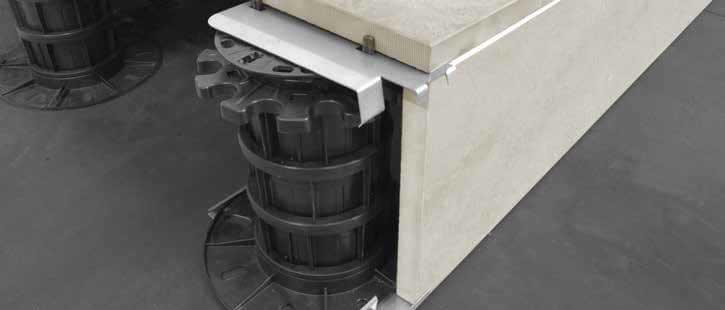

Stainless steel Head and Base retainer clips are available to enable vertical side finishing for installations of floating floors in the absence of lateral walls. There are ranges specifically designed to be used with the Arkimede™ 35, 41, 60 and 115 for paving only as well as universal designs for other ranges.

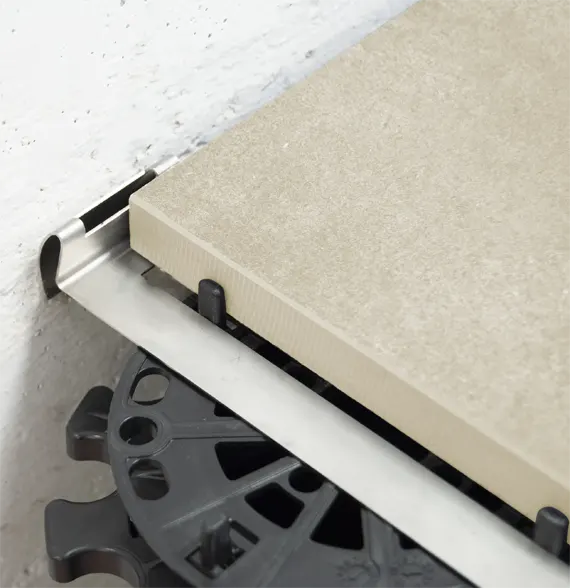

Also available are sprung Perimeter Spacer Brackets, used to prevent contact between the floating floor and abutting walls. Made in stainless steel or PP, these have a specially shaped head which allows normal movements for expansion and contraction, while maintaining a gap between the wall and the floor. These are designed to be used with all ranges of Dakota Floating Floor Supports.
| Code | Product | Size mm (in.) WxDxL | Pk | Pallet Qty. | UM |
|---|---|---|---|---|---|
| Stainless Steel Brackets | |||||

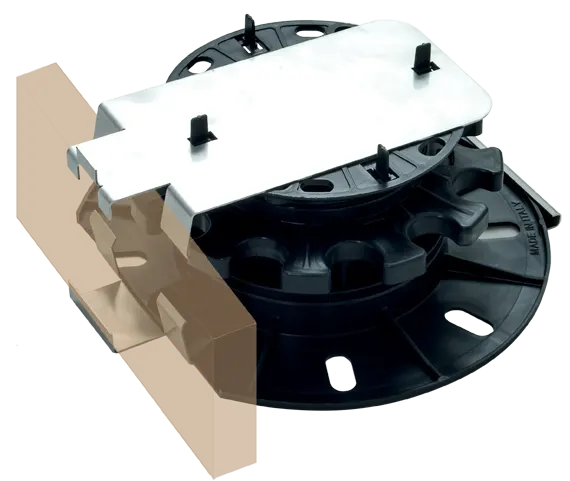

| TER09-1146/C | Base clip for lateral finishing 10mm tiles for Arkimede™ only | 10mm (⅜") | 100 | 5,000 pcs. | 1 pc. |
| TER09-1146/E | Base clip for lateral finishing 10mm tiles for Arkimede™ only | 10mm (⅜") | 100 | 5,000 pcs. | 1 pc. |
| TER09-1146/D | Base clip for lateral finishing 20mm tiles for Arkimede™ only | 20mm (¹³⁄₁₆") | 100 | 5,000 pcs. | 1 pc. |
| TER09-1146/F | Head clip for lateral finishing 20mm tiles for Arkimede™ only | 20mm (¹³⁄₁₆") | 100 | 5,000 pcs. | 1 pc. |
| TER09-1146/B20 | Base clip for lateral finishing 20mm tiles for Hercules, 3D-Scopic, Level-Up | 20mm (¹³⁄₁₆") | 100 | 5,000 pcs. | 1 pc. |
| TER09-1146/B30 | Base clip for lateral finishing 30mm tiles for Hercules, 3D-Scopic, Level-Up | 30mm (1³⁄₁₆") | 100 | 5,000 pcs. | 1 pc. |
| TER09-1146/B40 | Base clip for lateral finishing 40mm tiles for Hercules, 3D-Scopic, Level-Up | 40mm (1⁹⁄₁₆") | 100 | 5,000 pcs. | 1 pc. |
| TER09-1146/H20 | Head clip for lateral finishing 20mm tiles for Hercules, 3D-Scopic, Level-Up | 20mm (¹³⁄₁₆") | 100 | 5,000 pcs. | 1 pc. |
| TER09-1146/H30 | Head clip for lateral finishing 30mm tiles for Hercules, 3D-Scopic, Level-Up | 30mm (1³⁄₁₆") | 100 | 5,000 pcs. | 1 pc. |
| TER09-1146/H40 | Head clip for lateral finishing 40mm tiles for Hercules, 3D-Scopic, Level-Up | 40mm (1⁹⁄₁₆") | 100 | 5,000 pcs. | 1 pc. |

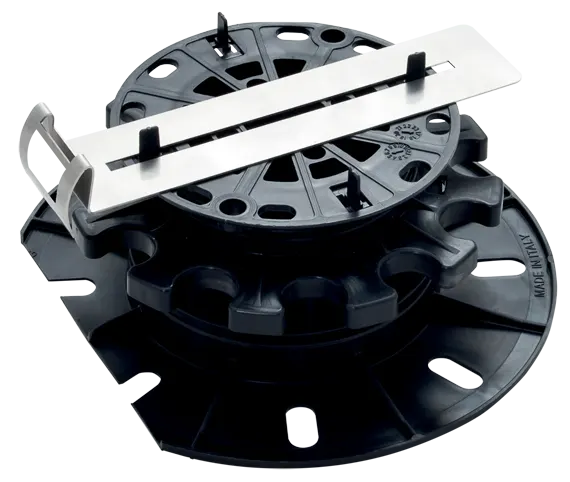

| TER09-1146/A | Universal perimeter spacing bracket | - | 100 | 7,000 pcs. | 1 pc. |
| Polypropylene Brackets | |||||
| TER09-1146/AP | Universal perimeter spacing bracket in PP | - | 200 | 28,800 pcs. | 1 pc. |
