A set of spacer shims and wedges for multiple applications in the construction industry. This kit contains 20 pieces of each of wedges and spacers, providing a really handy 'go to' solution for those moments when having something just the right size, to pack out a low point or to wedge something in position, is essential.

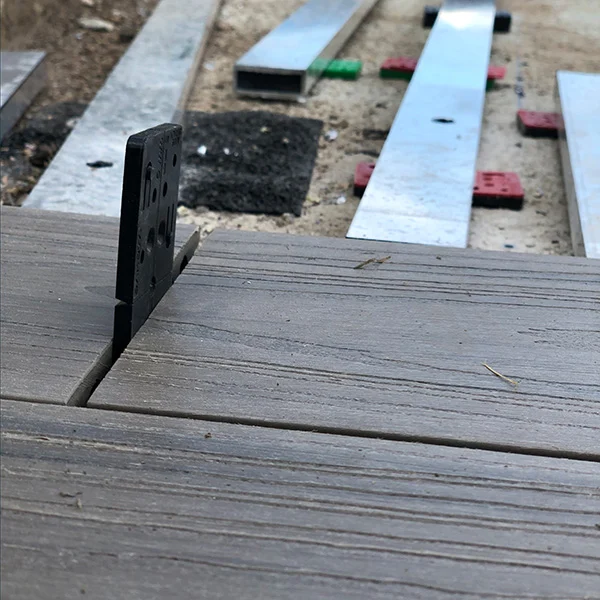

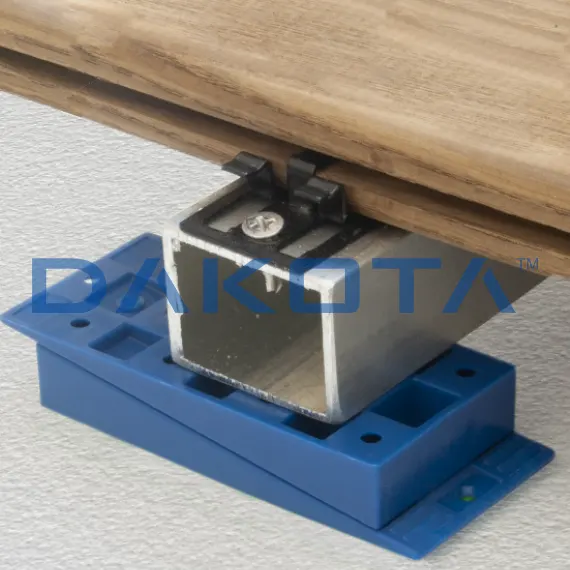

These are widely used during the installation of external raised decking. The combined use of two interlocking wedges guarantees precision adjustment of the joists and the use of the shims allows leveling of the surface over the understructure of the decking itself.

In addition these wedges and shims can be used during the installation and fixing of doors and windows frames, as well as for many other situations when a fast and modular leveling solution is required.

The 45mm x 170mm x 26mm (1¾''x 6¾'' x 1'') wedges, designed for larger gaps and increments, can be split into 2 smaller parts with dimensions 90mm x 45mm x 26mm to 12mm (3½'' x 1¾'' x 1" to ½”) and 74mm x 45mm x 11mm to 1 mm (3'' x 1¾'' x ⁷⁄₁₆ -to ¹⁄₁₆''). The smaller wedges can similarly be split into two parts.

Each of the spacer shims can be split into 2 or 4 smaller pieces at the pre-cut lines and can then be interlocked and used in multiples or combinations to create whatever thickness is needed.

Made of PP (polypropylene).

Advantages

• Easy and quick to use;
• A wide variety of shim thicknesses and combinations;
• Interlocking wedges for precision adjustment;
• High quality polypropylene components;

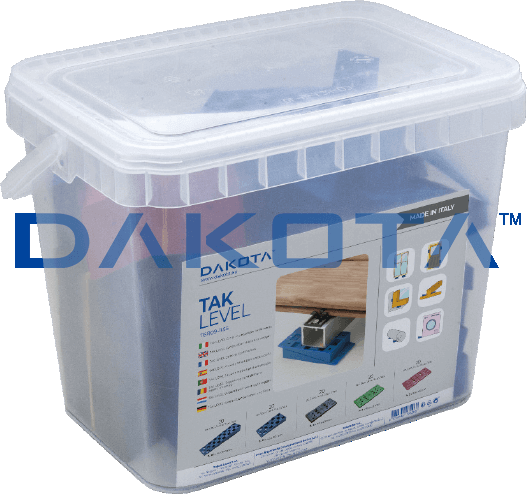

• Available in pre-packed kit, in a reusable polythene storage container.

Use
For shimming and spacing applications of all types.

Each kit contains:

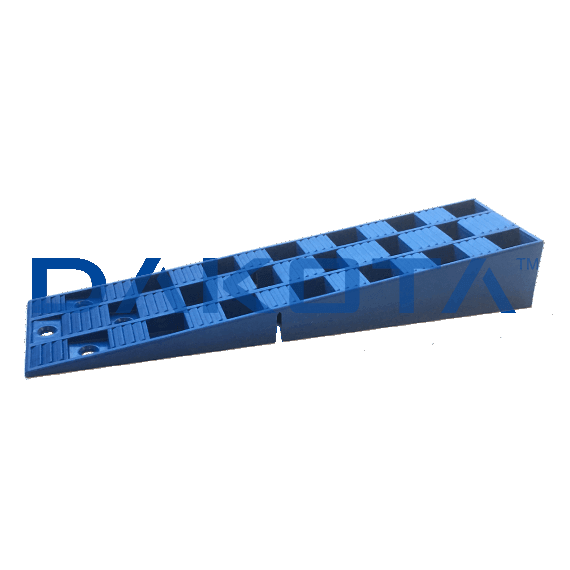

• 20 x TER09-2250 Wedges 90mm (3½");
• 20 x TER09-2251 Wedges 170mm (6¾");
• 20 x TER09-2252 Shims 2mm (⁵⁄₆₄");
• 20 x TER09-2253 Shims 3mm (⅛");
• 20 x TER09-2254 Shims 5mm (³⁄₁₆").

Sufficient for approx. 4 sq.m (43 sq.ft).
